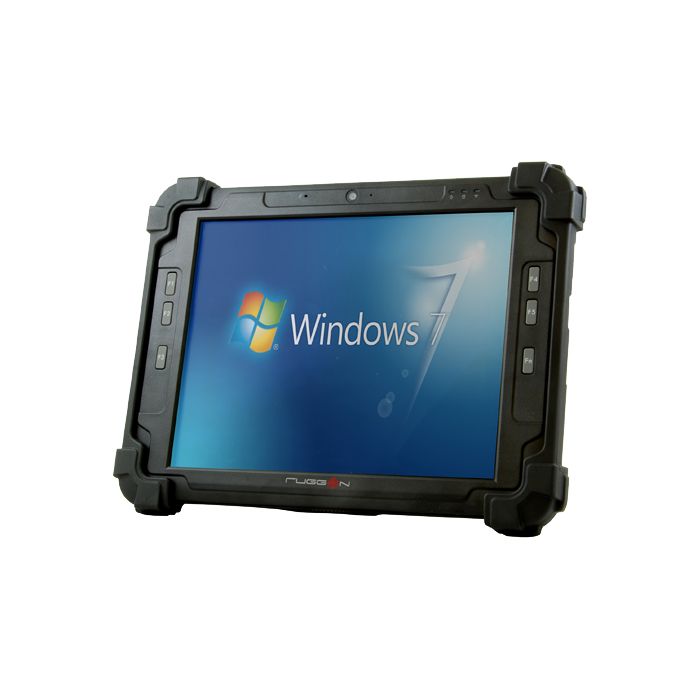

RuggOn PM-311B Blaxtone Rugged Tablet

Ruggon Rugged Tablet PC

PM-511 Features

  • IP65, MIL-STD-810G, 6 Feet Drop Resistance
  • Sunlight Readable Function By Request
  • Seamless Communications, Optional 3.5G
  • Up To 9 Hours Of Battery Life
  • 2Mp and 5Mp With Auto Focus, LED Flash Cameras
  • A Number Of 2-In-1 Modules For Data Capture
  • Wide Coverage Accessories
  • Compact Vehicle Dock W/ Wide Range Voltage Power

Request a Quote

Product Type

Operating System

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, RoHS compliant

Custom Options Products

Interface,Processor,Memory,Storage,Connections,Operating System

Dimensions

190.9 mm x 79.7 mm x 34.6 mm (7.5 x 3.1 x 1.3 in)

Humidity

90% relative at -30 C to +60 C; MIL-STD-810G 507.5 II

Operating System

Windows

Operating Temperature

:-30 C to +60 C, MIL-STD-810G 501.5/502.5 I, II and III

Processor

Intel

Storage Temperature

:-40 C to +70 C, MIL-STD-810G 501.5/502.5 I, II and III

Accessories and Docking

5-pin USB connector

Camera

Front : 2MP Rear : 5MP with auto focus and LED flash

Data Capture

NFC + GNSS (snap-on, option)1D/2D barcode reader (snap-on, option)1D/2D barcode reader + GNSS (snap-on, option)Smart card reader - CAC + GNSS (snap-on, option) Magnetic stripe reader (snap-on, option)

Display

10.4-inch 1024 x 768 XGA350 nit, 700 nits sunlight readable by request5-wire resistive touch

Drop Test

4'/1.22 m; MIL-STD-810G 516.6 IV

Functional Shock/Altitude

15,000'/4,500+ m; MIL-STD-810G 500.5 I, II and III

Integrated Communications

Wi-Fi 802.11 a/b/g/nBluetooth V4.0Optional 3.5GOptional GNSS (GPS/QZSS/GLONASS) (snap-on)

I/O Interfaces

USB 2.0 x 2Ethernet (via Mini USB to RJ-45 adapter) x 1Audio jack (headphone/microphone combo) x 132-pin docking connector x 1Micro SIM slot x 1Speaker & microphone

Memory

1 GB RAM/4 GB iNAND Flash

MEMORY (Installed)

1GB

Operating System

Windows Embedded Standard 7 32-bitWindows 7 Professional 32-bit

Power

External AC Power Adapter

Processor, Chipset

Intel Dual Core ATOM N2600 1.6GHz (Cedar Trail)2GB DDR332GB half-slim SATA SSD (option 64GB/128GB)

Ruggedness/Durability

Shock & Vibration : MIL-STD-810GDrop : 6 feet dropIP65 resistant design Operating Temperature : -20 C to +50 C

Security

TPM1.4

Sound/Audio

Built in: Receiver, loud-speaker; mic

Storage

MicroSD, SDHC

Vibration

MIL-STD-810G, Method 514.6, Procedure I and II, Category 5

The RuggOn PM-311B Blaxtone Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PM-511 is commonly used:

Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the RuggOn PM-311B Blaxtone Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.

The RuggOn PM-311B Blaxtone Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn PM-311B Blaxtone Rugged Tablet, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn PM-311B Blaxtone Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn PM-311B Blaxtone Rugged Tablet or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON PM-511 or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.
