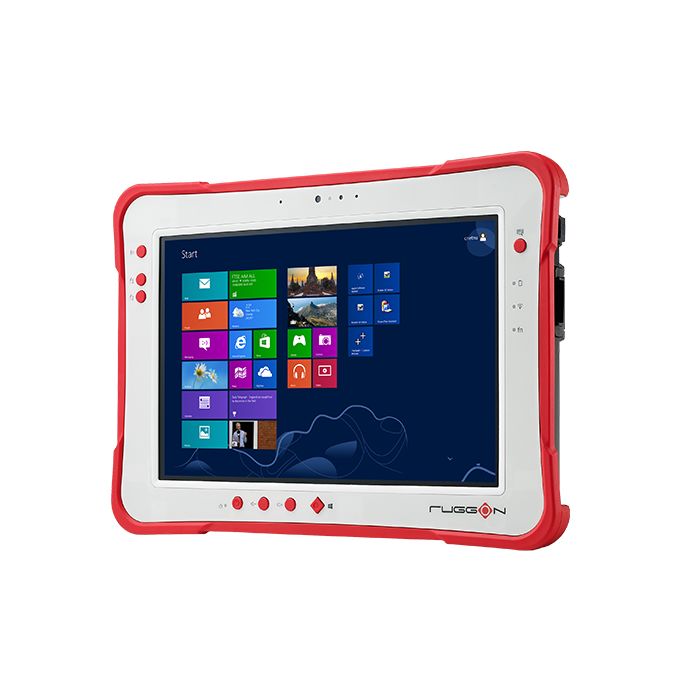

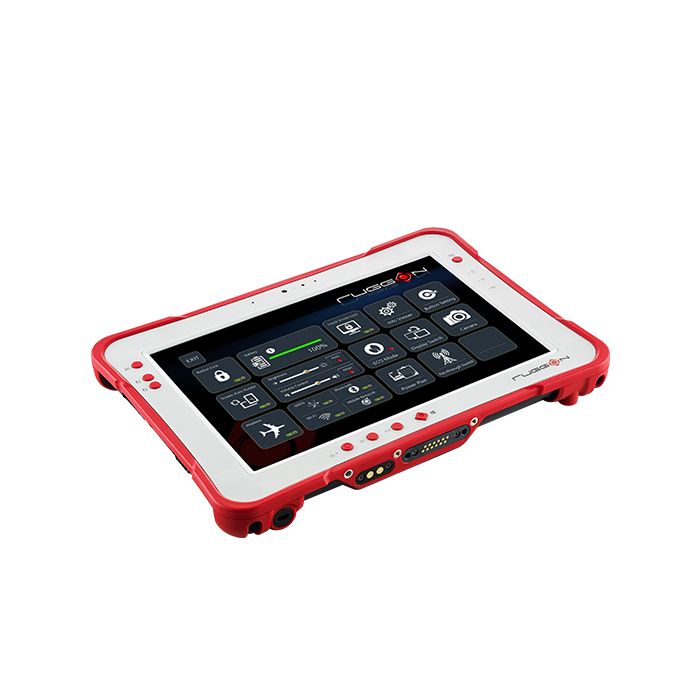

RuggOn PX-501 Rugged Tablet
Rextorm PX501 10.1ï¾” Fully Rugged Windows Tablet
PX-501 Features
- 4th Generation Intel Corei5 Processor 4300U Vpro 1.9GHz
- IP65, MIL-STD-810G, 5 Feet Drop Resistance
- 1000 Nit Sunlight Readable Display
- GNSS, Wi-Fi, Bluetooth and Optional 4G LTE
- Capacitive Touch Supports Digitizer, Glove Touch, Water Rejection, Palm Rejection, 2mm Hard Tip Stylus
- Hot Swappable Battery Design
- Wide Expansion Design For Data Capture
- Dual Pass-Through Connector For Wlan, GNSS, WWAN
Request a Quote
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Processor
Intel
Camera
Front : 2MP Rear : 5MP with auto focus and LED flash
Data Capture
2D barcode reader (option) NFC (snap-on, by request) Smart card reader - CAC (snap-on, by request) Magnetic stripe reader (snap-on, by request)
Display
10.1-inch 1920 x 1200 WUXGA; 1000 nit sunlight readable 10-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus Digitizer Gorilla Glass3
Integrated Communications
802.11 a/b/g/n/ac Bluetooth V4.0 GNSS (GPS/GLONASS/BeiDou) Optional 3.5G or 4G LTE
I/O Interfaces
USB 3.0 type A x 1 Gigabit Ethernet (RJ-45 ) x 1 RS-232 x 1 (option for USB 2.0 type A) Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1 Audio jack (headphone/microphone combo) x 1 Speaker & microphone Dual RF pass-through connector for WLAN, GNSS, W
Operating System
Windows Embedded 8.1 Industry 64-bit Windows Embedded 8 Standard 64-bit Windows 7 Professional 64-bit Windows Embedded Standard 7 64-bit
Power
External AC Power Adapter
Processor, Chipset
4th generation Intel Core i5 processor 4300U vPro * 1.9GHz 4GB DDR3L (8GB by request) 120GB mSATA SSD (option 240GB) * By request
Ruggedness/Durability
Shock & vibration : MIL-STD-810G Drop : 5 feet drop IP65 resistant design Operating temperature : -20 C to +60 C
Security
TPM1.2
The RuggOn PX-501 Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PX-501 is commonly used:
These examples highlight the versatility of the RuggOn PX-501 Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.
The RuggOn PX-501 Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn PX-501 Rugged Tablet, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn PX-501 Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RuggOn PX-501 Rugged Tablet or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON PX-501 or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.
