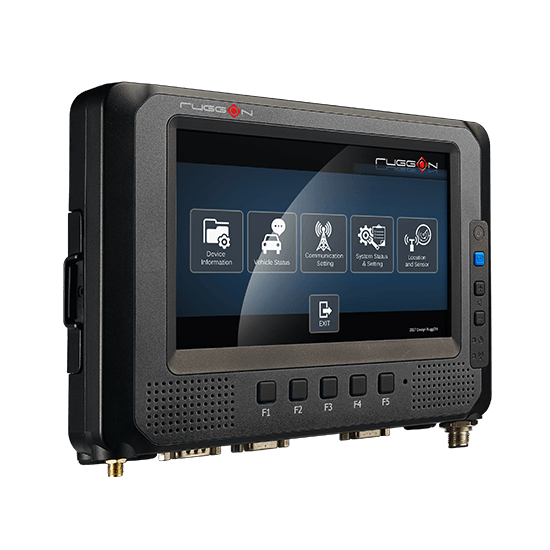

RuggOn RuggVMC MT7000 Data Terminal

Easy Identify, Tracking and IoT Enabled

MT7000 is reserved with integrated NFC/RFID design which enables easy to identify ability and able to connect with various IoT devices. The Multi-protocol HF RFID Tag support: ISO15693 and ISO14443A/B speed up fleets in border crossing and driver ID verification processes.

Smart Power Management

Outfitted with the upmost efficient power management, MT7000 is protected from sudden surges, noise filtering, overvoltage/ lower voltage, overcurrent, and other car power hazards that may damage the in-vehicle hardware system. MT7000 ™s UPS (uninterruptable power supply) battery supports additional time to save tracking data, or shut down properly during power loss.

Seamless Connectivity for Smoother Operations

MT7000 offers the best in-class connectivity with Wi-Fi 802.11 a/b/g/n/ac, GPRS/HSPA+/LTE, and Bluetooth V4.0 class2. The concurrent multi-GNSS reception of GPS/QZSS, GLONASS and BeiDou offers precise positioning. The supported dead-reckoning function also ensures continuous tracking even in tunnels, canyons, and overpasses.

User Friendly Interface

Utilizing DashON management software, the device information is easily accessible and configurable including, communication setting, power management and IO setting. For your added benefit, a complete SDK is also offered to make it easy for you to customize and extend the device with software apps.

RuggVMC MT7000 Features

  • Bright 7-inch PCT touch display with intuitive interface
  • Health readiness via SAE J1939
  • GNSS with dead reckoning function
  • Smart power management with ignition sense and backup battery
  • Vehicle-grade power protection

Request a Quote

IP Rating

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, FCC, eMark

Custom Options Products

Custom Logo,Processor,Memory,Storage,Operating System

Dimensions

(W x H x D) : 220 x 152 x 40 (mm)

Humidity

95%, non-condensing

Operating Temperature

-30°C to +60°C

Ordering Info

T7000-SA  (P/N : 71-8I15300-B1001)
MT7000 with Intel E3815 1.46GHz, 2GB DDR3L, 64GB mSATA and GPS / WIFI / BT with internal antenna
MT7000-LA  (P/N : 71-8I15300-B1002)
MT7000 with Intel E3826 1.46GHz, 2GB DDR3L, 64GB mSATA and GPS / WIFI / BT with internal antenna

Processor

Intel

Storage Temperature

-30°C to +70°C

Accessories and Docking

Mounting Kit
WWAN Antenna
WIFI / BT Antenna

Box Contents

Power cable
GPS / GLONASS antenna
DB15 to USB cable
DB15 to DIO / CAN bus cable assemblies

Buttons

Programmable button x 5, volume adjustment x 2, system on/off x 1

Display

7” WXGA TFT LCD (1024 x 600), 500 nits brightness
Capacitive multi touch (PCT)
Support auto-dimming

Integrated Communications

Gigabit Ethernet (RJ45 )
GNSS (GPS / QZSS or GLONASS or BeiDou), dead-reckoning supported
Optional Wi-Fi 802.11 a/b/g/n/ac
Optional 4G LTE / HSPA+ / GPRS
Optional Bluetooth V4.0 Class 2
NFC / RFID by request

I/O Interfaces

RS-232 with power supported x 1, RS-232/422/485 x 1
USB 3.0 x 1, USB 2.0 x 1
Dual Micro SIM slot x 1
CAN bus (SAE J1939 supported) x 1
Digital I/O x 4
Audio headset jack x 1
DC-in x 1

Memory

2GB DDR3L SODIMM

MEMORY (Installed)

2GB DDR3L SODIMM

Power Management

9~36 VDC input
Vehicle power protection (ISO7637-2 )
Ignition sense with delay on/off setting
Wake on RTC
UPS backup battery

Processor, Chipset

Intel® Atom™ E3815 1.46GHz, optional Intel® Atom™ E3826 1.46GHz

Ruggedness/Durability

IEC 60529 IP65 (except bottom side I/O)
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth

Software

DashON

Sound/Audio

Dual Speaker

Storage

mSATA SSD, Micro SD slot

Testing Standards

MIL-STD-810G, Method 514.7 c2/c3/c4
MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
EC 60529 IP65

Touchscreen

Capacitive multi touch (PCT)

Vibration

MIL-STD-810G, Method 514.7 c2/c3/c4

The RuggOn RuggVMC MT7000 Data Terminal is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RuggVMC MT7000 is commonly used:

Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the RuggOn RuggVMC MT7000 Data Terminal across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Data Terminal, Rugged Tablet fits your specific needs, please contact us.

The RuggOn RuggVMC MT7000 Data Terminal comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
