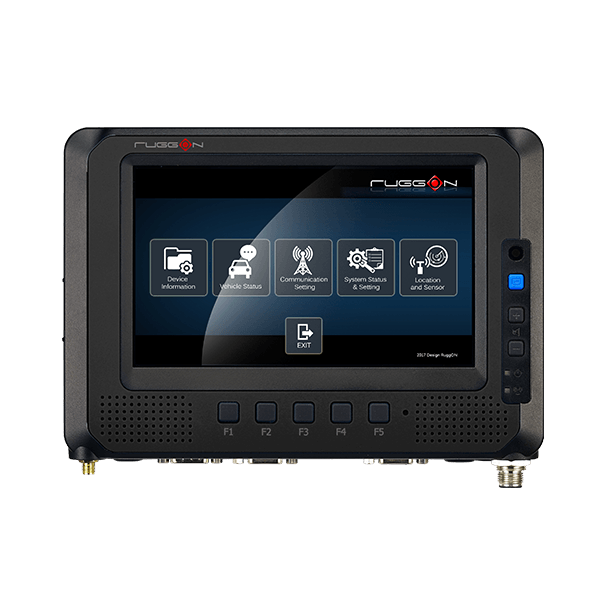

RuggOn RuggVMC MT7010 Data Terminal
Connectivity Maximized
For maximum connectivity, MT7010 is the perfect mobile data terminal with Wi-Fi 802.11 a/b/g/n, GPRS/HSPA+/LTE, and Bluetooth V4.1. Moreover, the terminal â„¢s integrated multi-GNSS reception of GPS/QZSS, GLONASS and BeiDou pin-points vehicle precision.
Getting Smart with Power
MT7010 is designed with vehicle-grade power protection against sudden surges, noise filtering, overvoltage/ lower voltage, overcurrent, and other car power hazards. Moreover, with the UPS (uninterruptable power supply) battery the device can prevent data loss by shutting down properly with enough time.
Built to Secure
Built with impenetrable durability in mind, MT7010 mobile data terminal can withstand the various environmental impacts when mounted on vehicles. This include the terminal â„¢s MIL-STD-810G to withstand various shock and impact. The terminal also builds in with water and dust resistance on various surfaces, allowing versatile applications.
User Friendly Interface
with Utilizing DashON management software, the device information is easily accessible and configurable including, communication setting, power management and IO setting. For your added benefit, a complete SDK is also offered to make it easy for you to customize and extend the device with software apps.
RuggVMC MT7010 Features
- Bright 7-inch PCT touch display with intuitive interface
- Ready to use auto-dimming function
- Health readiness via SAE J1939
- Diverse wireless connectivity for field usage
- Smart power management with ignition sense and backup battery
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, FCC, eMar
Custom Options Products
Custom Logo,Processor,Memory,Storage,Operating System
Dimensions
(W x H x D) : 220 x 152 x 40 (mm)
Humidity
95%, non-condensing
Operating System
Android
Operating Temperature
-20°C to +60°C
Ordering Info
MT7010-QBE (P/N: 72-6I16900-10002)
MT7010 with Quad-Core Cortex-A7 1.3GHz, 2GB RAM, 16GB eMMC, GPS, WIFI/ BT with internal antenna and
Android 5.1 for EMEA
MT7010-QBN (P/N: 72-6I16900-10003)
MT7010 with Quad-Core Cortex-A7 1.3GHz, 2GB RAM, 16GB eMMC GPS, WIFI/ BT with internal antenna and
Android 5.1 for North America
MT7010-QBC (P/N: 72-6I16900-10004)
MT7010 with Quad-Core Cortex-A7 1.1GHz, 1GB RAM, 8GB eMMC, GPS, WIFI/ BT with internal antenna and
Android 5.1 for China
Processor
Cortex
Storage Temperature
30°C to +70°C
Accessories and Docking
Mounting Kit
WWAN Antenna
WIFI / BT Antenna
Box Contents
Power cable
GPS / GLONASS antenna
DB15 to USB cable
DB15 to DIO / CAN bus cable assemblies
Buttons
Programmable button x 5
System on/off x 1
Volume adjustment x 2
Display
7†WXGA TFT LCD (1024 x 600), 500 nits brightness
Capacitive multi touch (PCT)
Support auto-dimming
Integrated Communications
Gigabit Ethernet (RJ45 )
GNSS (GPS / GLONASS / BeiDou)
4G LTE / HSPA+ / GPRS
Wi-Fi 802.11 a/b/g/n
Bluetooth V4.1
I/O Interfaces
RS-232 with power supported x 1
RS-232/422/485 x 1
USB 2.0 x 2
Dual Micro SIM slot x 1
CAN bus (SAE J1939 supported) x 1
Digital I/O x 4
Audio headset jack x 1
DC-in x 1
Memory
1GB/ 2GB LPDDR2 SDRAM
MEMORY (Installed)
1GB/ 2GB LPDDR2 SDRAM
Operating System
Android
Power Management
9~36 VDC input
Ignition sense with delay on/off setting
UPS backup battery
Vehicle power protection (ISO7637-2 )
Processor, Chipset
Quad Core Cortex-A7 1.1GHz/ 1.3GHz
Ruggedness/Durability
IEC 60529 IP65 (except bottom side I/O)
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
SIM/SAM Slot
Dual Micro SIM slot x 1
Software
DashON
Sound/Audio
Built-in Dual Audio
Storage
8GB/ 16GB eMMC and Micro SD slot
Touchscreen
Capacitive multi touch (PCT)
The RuggOn RuggVMC MT7010 Data Terminal is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RuggVMC MT7010 is commonly used:
Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the RuggOn RuggVMC MT7010 Data Terminal across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Data Terminal, Rugged Tablet fits your specific needs, please contact us.
The RuggOn RuggVMC MT7010 Data Terminal comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn RuggVMC MT7010 Data Terminal, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn RuggVMC MT7010 Data Terminal or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
