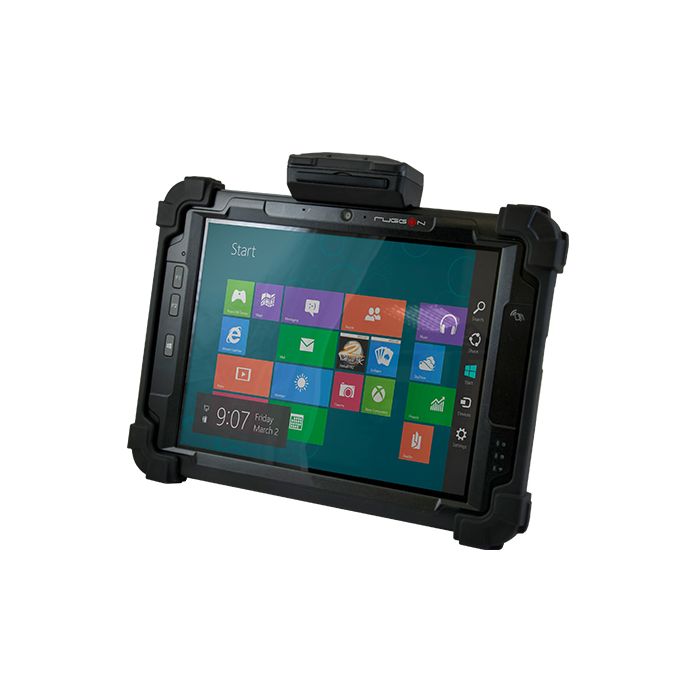

RuggOn PM-522 Rugged Tablet

Blaxtone PM-522 10.4ï¾” Fully Rugged Windows Tablet. Considering the requirements of field work, PM-522 features best-in-class robust structure, the complete RF technology and rich data-capture functions.

PM-522 Features

  • IP65, MIL-STD-810G, 6 Feet Drop Resistance
  • 10-Point Capacitive Multi-Touch, Sunlight Readable
  • 802.11 AC, Bluetooth, Optional 3.5G Or 4G LTE
  • Hot Swappable Battery Design
  • Nfc and GNSS Built-In
  • A Number Of Snap-On Modules For Data Capture
  • Compact Vehicle Dock With Wide Range Voltage Power
  • Dual Pass-Through Connector For Wlan, GNSS, WWAN

Request a Quote

Product Type

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, RoHS compliant

Custom Options Products

Interface,Processor,Memory,Storage,Connections,Operating System

Processor

Intel

Camera

Front : 2MP Rear : 5MP with auto focus and LED flash

Data Capture

NFC1D/2D barcode reader (snap-on, option)Smart card reader-CAC + GNSS (snap-on, option) Magnetic stripe reader (snap-on, option)

Display

10.4-inch 1024 x 768 XGA 700 nit sunlight readable display 10-point capacitive touch

Integrated Communications

Wi-Fi 802.11 a/b/g/n/ac Bluetooth V4.0 Optional 3.5G or 4G LTE GNSS (GPS/GLONASS/BeiDou by request)

I/O Interfaces

USB 3.0 x 1, USB 2.0 x 1, Micro SIM slot x 1Ethernet (via Mini USB to RJ-45 adapter) x 1Audio jack (headphone/microphone combo) x 1Speaker & microphone32-pin docking connector x 1

Operating System

Windows Embedded 8.1 Industry 64-bitWindows Embedded Standard 8 64-bitWindows Embedded Standard 7 64-bitWindows 7 Professional with Service Pack 1 64-bit

Power

External AC Power Adapter

Processor, Chipset

Intel Dual Core ATOM E3827 1.75GHz (Bay Trail)4GB DDR364GB mSATA SSD (option 120GB / 240GB)

Ruggedness/Durability

Shock & Vibration : MIL-STD-810G Drop : 6 feet drop Water & dust : IP65 Operating Temperature : -20 C to +50 C

Security

TPM1.3

The RuggOn PM-522 Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PM-522 is commonly used:

Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the RuggOn PM-522 Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.

The RuggOn PM-522 Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn PM-522 Rugged Tablet, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn PM-522 Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn PM-522 Rugged Tablet or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON PM-522 or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.
