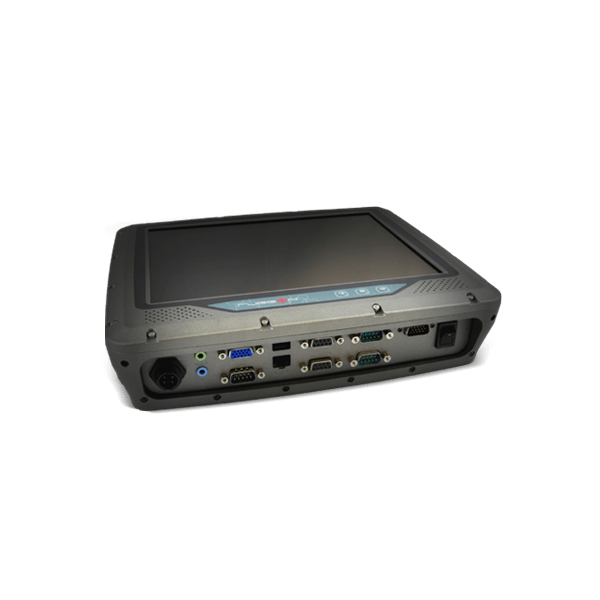

RuggOn RuggVMC VM-521 Data Terminal

Speed﹐Reliability﹐Quality -The Next Generation of Wi-Fi

Using the latest Wi-Fi standard 802.11 ac, VM-521 provides faster processing, broader coverage, more stable and efficient transmission. Moreover, it offers higher capacity for networking of more devices to simultaneously transfer data.

Superb Visibility Anytime﹐Anywhere

Featuring 1000 nits truly sunlight readable display, VM-521 offers superb viewability even in direct sunlight. With brightness adjustable button, providing a widest brightness adjustable display to meet dim-to-black requirement. A best-in-class visibility makes VM-521 ideal for day and night operations.

Optimal Power Design of Vehicle Application

In order to fulfill diversified vehicle power requirements, VM-521 provides two types of wide range power modules “ 9 to 32 VDC and 18 to 60 VDC. Moreover, battery built-in design protects VM-521 from unstable power input during the vehicle operation.

Industrial Communications for Field Use

With gigabit LAN, USB, digital I/O, COM and CAN ports, RuggON’s vehicle mount computer is truly designed for field operators.

RuggVMC VM-521 Features

  • 1000 nits high brightness display supports defroster
  • IEC 60529 IP66, MIL-STD-810G
  • Smart power management with wide range DC power input
  • SAE J1939 / OBDII supports fleet management applications
  • Industrial communications for field use
  • Optional video surveillance function

Request a Quote

IP Rating

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, FCC, CB

Custom Options Products

Custom Logo,Processor,Memory,Storage,Operating System

Dimensions

(W x H x D) : 276 x 252 x 67.3 (mm)

Humidity

95%, non-condensing

Operating Temperature

-30°C to +55°C

Ordering Info

VM-521-HR (P/N : 71-8I13200-A7012)
VM-521l with Intel Atom E3845 1.91GHz, 4GB DDR3L, 64GB SSD, and Wi-Fi / BT]

_x005F_x000D_

VM-521-HRD (P/N : 71-8I13200-A7010)
VM-521 with Intel Atom E3845 1.91GHz, 4GB DDR3L, 64GB SSD, Wi-Fi / BT and defrost function

_x005F_x000D_

VM-521-LR (P/N : 71-8I13200-A7007)
VM-521 with Intel Atom E3827 1.75GHz, 4GB DDR3L, 64GB SSD, and Wi-Fi / BT

_x005F_x000D_

VM-521-LRD (P/N : 71-8I13200-A7011)
VM-521 with Intel Atom E3827 1.75GHz, 4GB DDR3L, 64GB SSD, Wi-Fi / BT and defrost function

Processor

Intel

Shock

MIL-STD-810G, 40G at 11ms Terminal / Sawtooth

Storage Temperature

-30°C to +70°C

Accessories and Docking

Mounting Kit
WWAN Antenna
WIFI / BT Antenna

Box Contents

DB9 series to dual USB cable
External power cable

Buttons

Programmable button x 1, brightness adjustment x 1_x005F_x000D_ Optional defrost / defog button x 1

Display

10.4” XGA TFT LCD with LED backlight (1024 x 768)
1000 nits brightness
5-wire resistive touch supports defroster function

Integrated Communications

Dual Gigabit Ethernet (RJ45)
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 Class 2
Optional 4G LTE / GPRS / HSPA+
Optional GNSS (GPS / QZSS or GLONASS)

I/O Interfaces

R S-232 x 3 (COM1 with power supported)
USB 2.0 x 2
CAN bus (SAE J1939 / OBD II supported) x 1
DI x 4, DO x 4
Audio headset jack x 1
Optional video input x 4
DC-in x 1

Memory

4GB DDR3L SODIMM, expandable to 8GB

MEMORY (Installed)

4GB DDR3L SODIMM

Power Management

9~32 VDC input, optional 18~60 VDC
Optional ignition sense
Wake on RTC
UPS backup battery

Processor, Chipset

Intel® Atom® E3845 processor 1.91GHz, optional Intel® Atom® E3827 processor 1.75GHz

Ruggedness/Durability

IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change1, Method 509.6

Software

DashON

Sound/Audio

Built in Dual Audio Speaker

Storage

2.5” SSD (64GB default), SD Slot

Touchscreen

5-wire resistive touch supports defroster function

Vibration

MIL-STD-810G, Method 514.7 c2/c3/c4

The RuggOn RuggVMC VM-521 Data Terminal is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RuggVMC VM-521 is commonly used:

Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the RuggOn RuggVMC VM-521 Data Terminal across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Data Terminal, Rugged Tablet fits your specific needs, please contact us.

The RuggOn RuggVMC VM-521 Data Terminal comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn RuggVMC VM-521 Data Terminal, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn RuggVMC VM-521 Data Terminal or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn RuggVMC VM-521 Data Terminal or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON RuggVMC VM-521 or need a custom Data Terminal solution designed specifically for you, our team of technical experts are ready to assist you.
