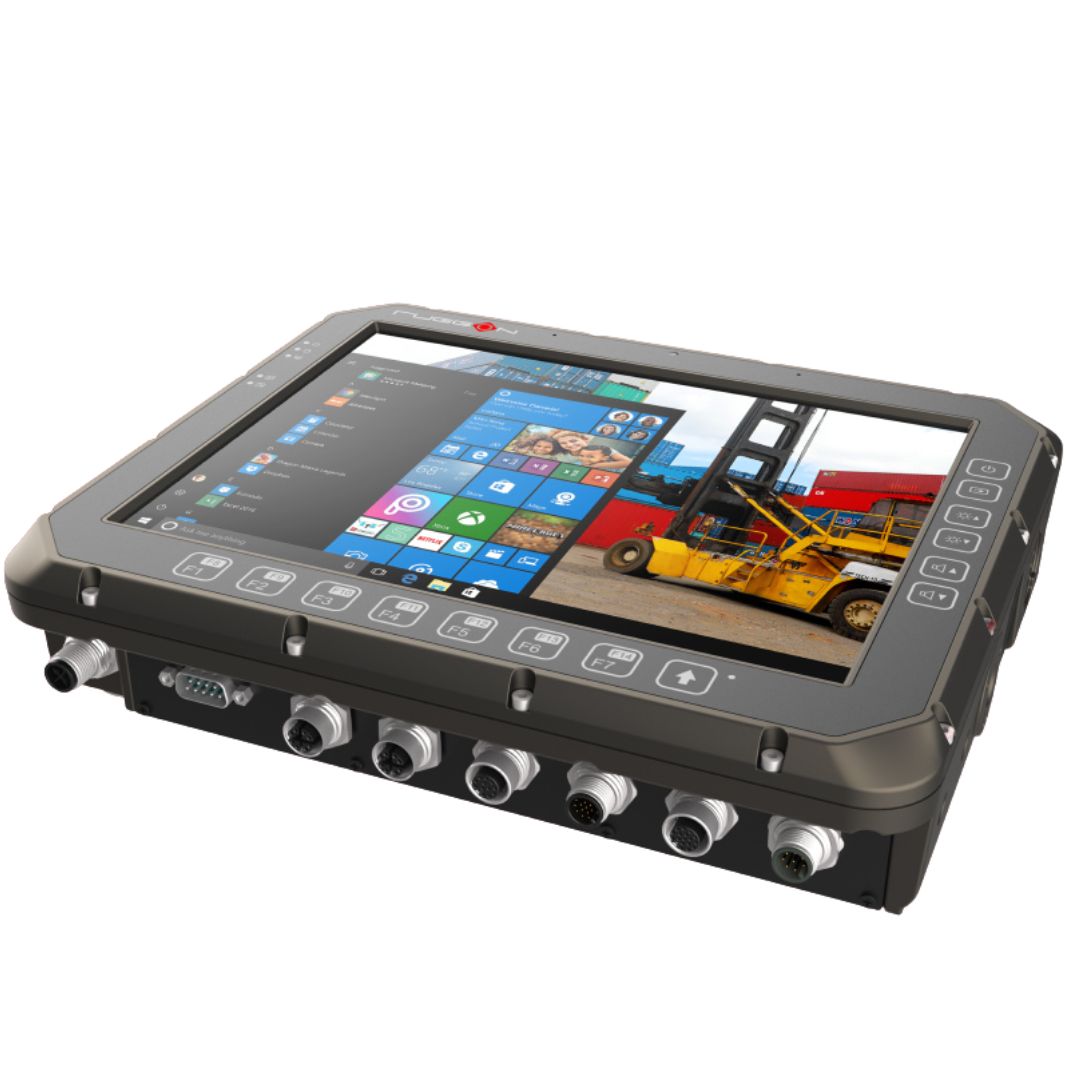

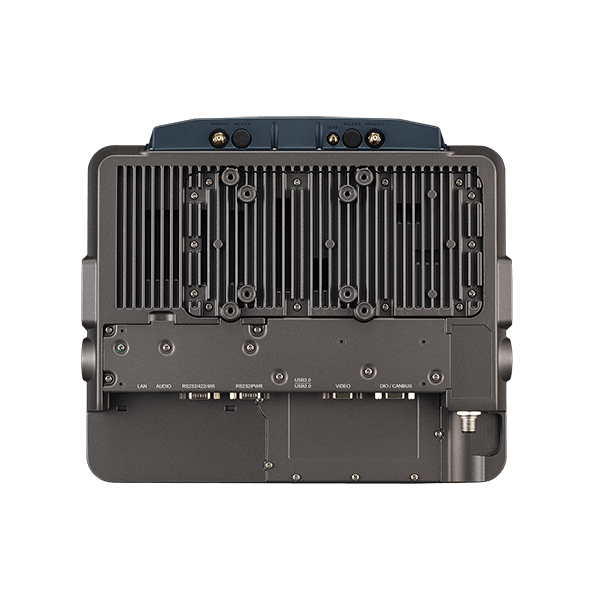

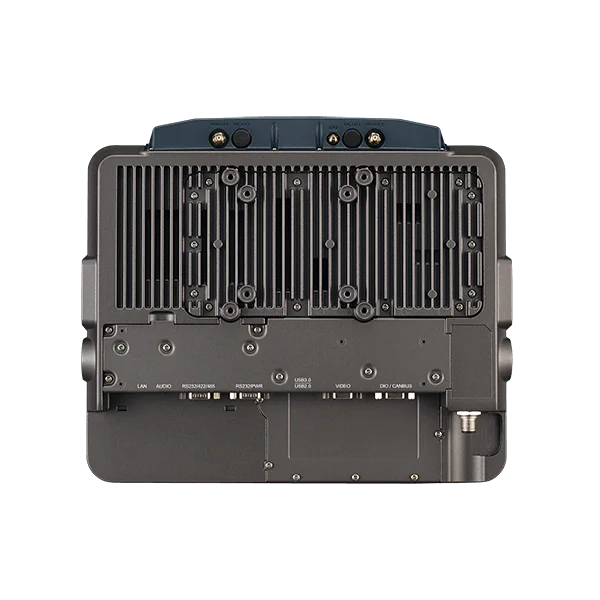

RuggOn VULCAN 10X 10.4” Vehicle Mount Computer
The RuggON Vulcan 10X is a rugged 10.4” Windows vehicle-mount computer designed for warehouse, logistics, and fleet operations where reliability is essential. Certified to MIL-STD-810H and IP66, and tested to IEC 60721-3-5 Class 5M3, the Vulcan 10X resists shock, vibration, dust, and water.
It features a sunlight-readable XGA display with glove and rain-capable touch input, enabling clear visibility and usability in harsh field conditions. Powered by an Intel® Core™ i5 processor and Windows 11 IoT Enterprise, the Vulcan 10X supports smooth application performance in vehicle-mounted workflows.
Connectivity options include Wi-Fi 6, Bluetooth 5.2, GNSS, and optional LTE/CBRS for uninterrupted communication in motion. Its rich I/O includes USB, RS232, LAN, and optional CAN bus, making it highly adaptable for industrial vehicle and warehouse system integration.
VULCAN 10X Features
- Outdoor display optimizes visibility for day or night
- Screen defroster option for cold storage applications
- IP66, MIL-STD 810H and IEC-60721-3-5 5M3 certified
- Supports CAN bus 2.0B, SAE J1939
- 5G ready and WiFi supports fast roaming
- Rich I/O design for maximum utilisation
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
Taiwan
System
Intel® Core™ i5-8365UE 1.6GHz, optional Intel® Celeron® 4305UE 2.0GHz 4GB DDR4 SODIMM, expandable to 32GB M.2 2280 SSD Built-in 6-axis motion sensor, 2 x speaker OS option : Windows 10 IoT Enterprise
Display
10.4” XGA TFT LCD with LED backlight (1024 x 768) 1200 nits brightness supports auto-dimming 5-wire resistive touch supports defrost / defog function PCT touchscreen supports glove and rain mode (by request)
Communication
Wi-Fi 802.11 a/b/g/n/ac/v/r/k Bluetooth V5.0 Optional 4G LTE / HSPA+ / GPRS or 5G Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS)
Function Button
Programmable button x 7, brightness adjustment x 2, volume adjustment x 2, display on/off x 1 Optional defrost / defog button x 1
I/O Interface
RS-232 with power supported x 1 RS-232(TX,RX)/422/485 x 1, RS-232(TX,RX) x 2, RS-485 x 2 Gigabit Ethernet x 2 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DisplayPort Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 Optional CAN bus 2.0B x 2 or SAE J1939 x 1 DI x 2, DO x 2 Mic in x 2, Line out (L/R) x 1 Optional video input
Certifications
CE, FCC, CB
Power management
9~60 VDC input Ignition sense with delay on/off seting Wake on RTC Internal battery for graceful shutdown
Rugged Features
IEC 60529 IP66, IEC 60721-3-5 class 5M3 Vibration (operating) : MIL-STD-810H, Method 514.8 C2/C4/C6 Shock (operating) : MIL-STD-810H, Method 516.8, Procedure 1, functional shock Optional Salt fog : MIL-STD-810H, Method 509.7
Environmental (Tested to MIL-STD-810H standards)
Operating temperature -30°C to +55°C Storage temperature -40°C to +70°C Humidity 95%, non-condensing
Mechanical Spec
VESA 75 / 100 Dimension (W x H x D) : 278 x 234 x 57 (mm) Weight : 3.2kg
In-box Accessory
External power cable
Ordering Information
VX-501-R (P/N:72U8I19700-A0001) VULCAN X with 10.4” LCD and resistive touch including Intel Core i5-8365UE 1.6GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501C-R (P/N:72U8I19700-A0002) VULCAN X with 10.4” LCD and resistive touch including Intel Celeron 4305UE 2.0GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501-P (P/N:72U8I19700-A0003) VULCAN X with 10.4” LCD and PCT touch including Intel Core i5-8365UE 1.6GHz, 4GB DDR4, 128GB SSD, WIFI / BT VX-501C-P (P/N:72U8I19700-A0004) VULCAN X with 10.4” LCD and PCT touch including Intel Celeron 4305UE 2.0GHz, 4GB DDR4, 128GB SSD, WIFI / BT
Accessories
Mounting Kit Power Cable Antenna U-Shape Bracket Keyboard Tray
The RuggOn VULCAN 10X 10.4” Vehicle Mount Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the VULCAN 10X is commonly used:
These examples highlight the versatility of the RuggOn VULCAN 10X 10.4” Vehicle Mount Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Data Terminal, Rugged Tablet fits your specific needs, please contact us.
The RuggOn VULCAN 10X 10.4” Vehicle Mount Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn VULCAN 10X 10.4” Vehicle Mount Computer, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn VULCAN 10X 10.4” Vehicle Mount Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RuggOn VULCAN 10X 10.4” Vehicle Mount Computer or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON VULCAN 10X or need a custom Data Terminal solution designed specifically for you, our team of technical experts are ready to assist you.
