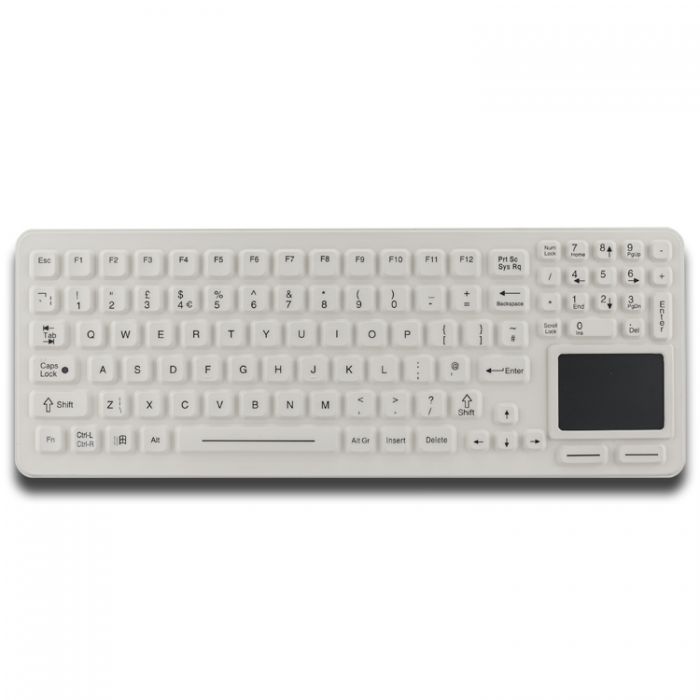

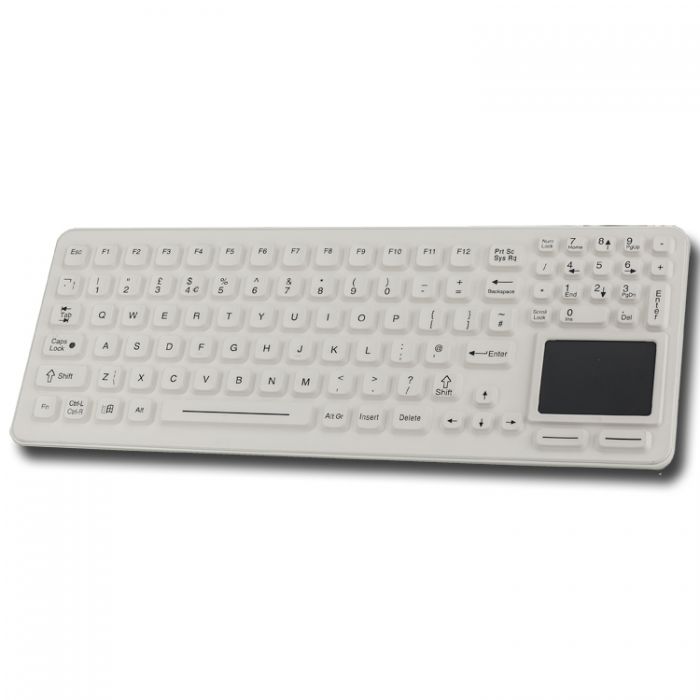

iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad

The iKey SK-97-TP medical keyboard combines the functionality of a full-size keyboard and touchpad in a slim, compact design, making it ideal for healthcare settings where infection control is critical. Designed for use in hospitals, clinics, laboratories, and dental offices, this fully sealed keyboard is resistant to dirt and liquids and compatible with all hospital-approved disinfectants, ensuring easy cleaning and disinfection.

The SK-97-TP features higher-profile, tactile keys, offering a more responsive feel compared to iKey’s FL-series medical keyboards. Integrated left and right-click buttons located beneath the touchpad enhance usability. This rugged keyboard is also suitable for industrial applications, such as in medical carts and workstations in operating rooms, clean rooms, and manufacturing environments. Its durable construction ensures reliable performance in demanding conditions, making it the perfect solution for healthcare and industrial professionals alike.

SK-97-TP Features

  • Cleanable, Liquid Proof Design
  • Integrated Touchpad
  • 12 Function Keys + 10-Key Numeric Pad
  • Rugged Abs Case
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

(w-h-d) 366.8mm x 137.2mm x 22.6mm

Housing Colour

White / Medical White

Humidity

100% Humidity Resistant

Cable

LENGTH: 10ft (3m)

Compatibility

PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

97

Pointing Device

Touchpad

Power

PS/2: KEYBOARD: 50mA@5V (from Keyboard port) TOUCHPAD: 10 mA@5V (from Mouse port) USB: 60mA@5V (from CPU port)

Product Weight

1.5 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SK-97-TP is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Pharmaceutical

These examples highlight the versatility of the iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SK-97-TP Medical Grade Rugged Keyboard With Touchpad or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SK-97-TP or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
