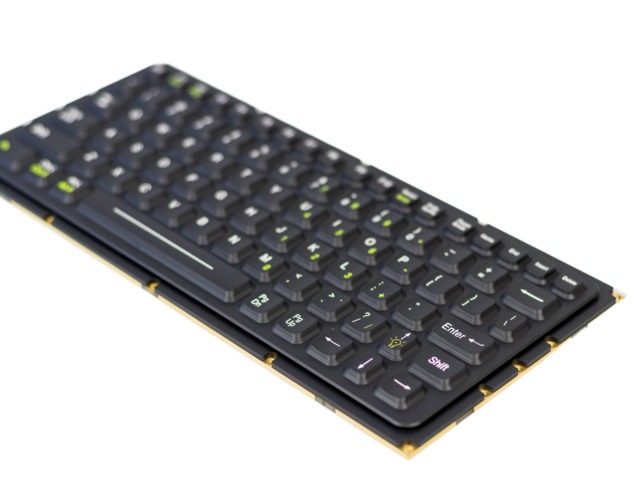

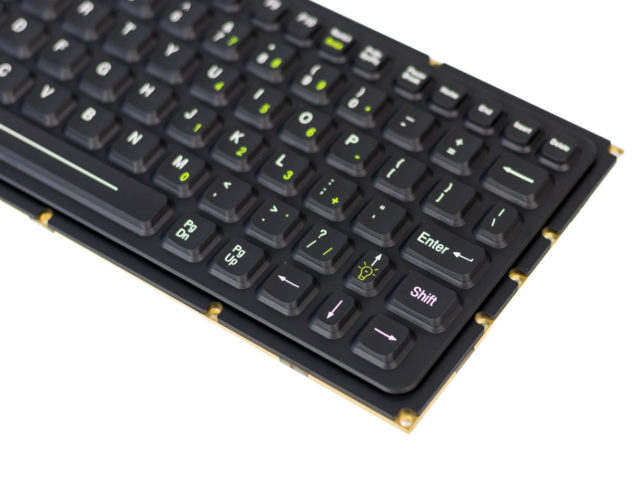

iKey SL-81-OEM Compact Rugged Keyboard

The iKey SL-81-OEM is a compact and rugged keyboard kit that offers a versatile solution for low-light environments where space is limited. Designed to meet NEMA 4X standards, equivalent to an IP66 rating, this keyboard is sealed against dust, liquids, and corrosive materials, ensuring reliable performance in demanding industrial and mobile applications.

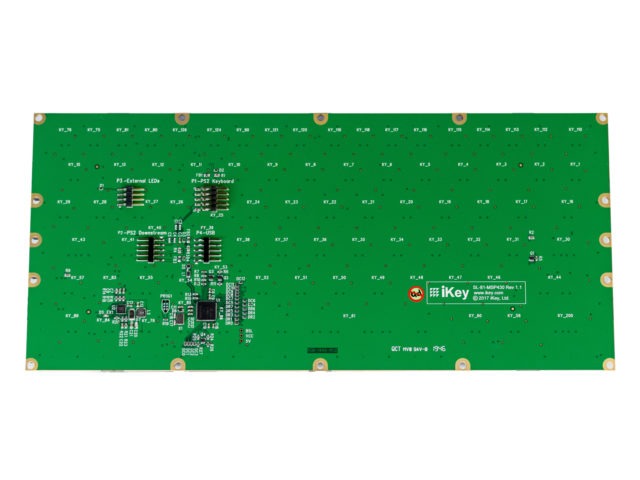

The kit includes an industrial silicone keypad, switch matrix board, keyboard controller, and necessary cables for easy integration into custom systems. Integrated backlighting enhances usability in low-light or dimly lit settings, making it perfect for industries such as manufacturing, oil and gas, and transportation. Its durable construction guarantees long-lasting performance, even in harsh environments.

SL-81-OEM Features

  • Integrated LED Backlighting
  • 81-Key Functionality + 12 Function Keys
  • Numlock Key For Secondary Keyboard
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.35" x 5.11" x 0.42" (w-h-d) 288.3mm x 129.8mm x 10.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 or AT

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

10 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 180g (+/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

Mounting Type

VESA Mount or Desktop

No. Of Keys

81

Pointing Device

No Pointer

Power

KEYBOARD: 200mA @ 5V (from keyboard port) USB: 200mA @ 5V (from CPU port)

Product Weight

1.5 lbs (0.68 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SL-81-OEM Compact Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SL-81-OEM is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SL-81-OEM Compact Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SL-81-OEM Compact Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SL-81-OEM Compact Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SL-81-OEM Compact Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SL-81-OEM Compact Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SL-81-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
