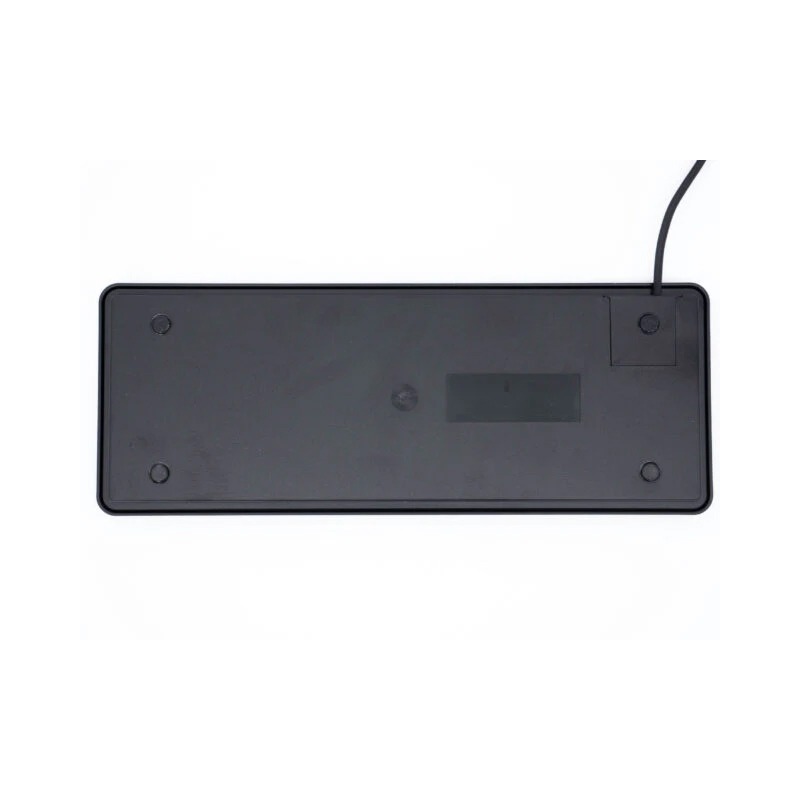

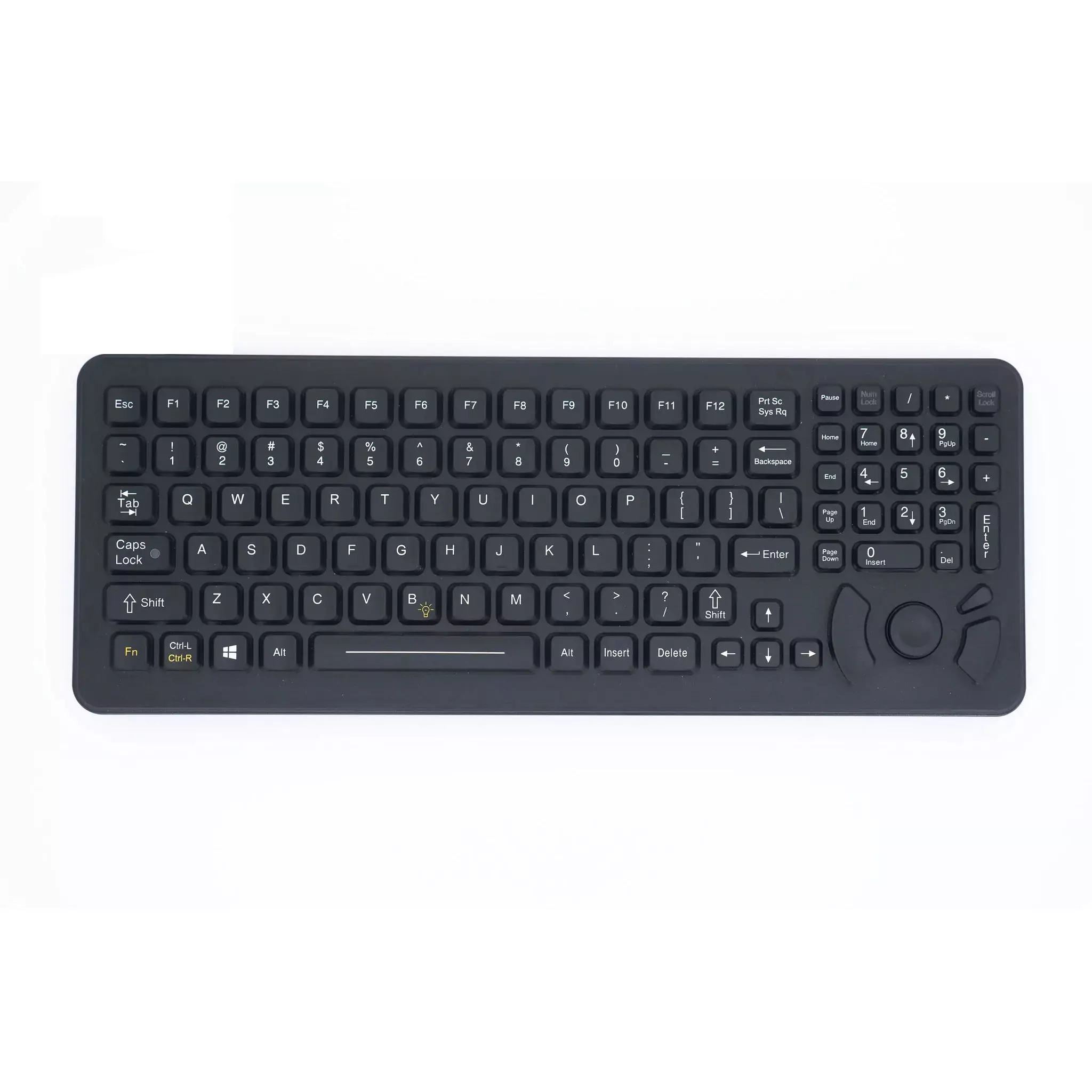

iKey SLK-102-FSR Backlit Rugged Keyboard

The iKey SLK-102-FSR is a rugged, fully sealed industrial keyboard designed for high-reliability performance in harsh environments. It features a compact 102-key layout with an integrated force sensing resistor (FSR) pointing device, delivering both keyboard and mouse functionality in one durable unit. Rated to NEMA 4X and IP65 standards, the SLK-102-FSR is resistant to dust, water, and chemical exposure, making it ideal for use in military vehicles, medical carts, mobile command units and industrial workstations. Its industrial-grade silicone rubber keys are backlit with adjustable LED illumination, ensuring visibility in low-light or night-time conditions. The integrated FSR pointer has no moving parts, offering precision control with minimal wear, even during glove use or constant operation. Housed in a tough ABS polycarbonate case, the keyboard supports both USB and PS/2 connections and operates in extreme temperatures ranging from -40°C to +60°C. Compact, backlit, and built for mission-critical applications, the SLK-102-FSR is the reliable choice for operators who demand consistent performance in the field.

SLK-102-FSR Features

  • Slim, Compact Design
  • Integrated Force Sensing Resistor
  • Integrated LED Backlighting
  • Ms Windows Function Keys
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red / NVIS Green

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.60" x 5.55" x 1.05" (w-h-d) 370.8mm x 141mm x 26.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

88

Pointing Device

Force Sensing Resistor

Power

PS/2: KEYBOARD: 210mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port)

Product Weight

1.5 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLK-102-FSR Backlit Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLK-102-FSR is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Pharmaceutical

These examples highlight the versatility of the iKey SLK-102-FSR Backlit Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLK-102-FSR Backlit Rugged Keyboard comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-102-FSR Backlit Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-102-FSR Backlit Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLK-102-FSR Backlit Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLK-102-FSR or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
