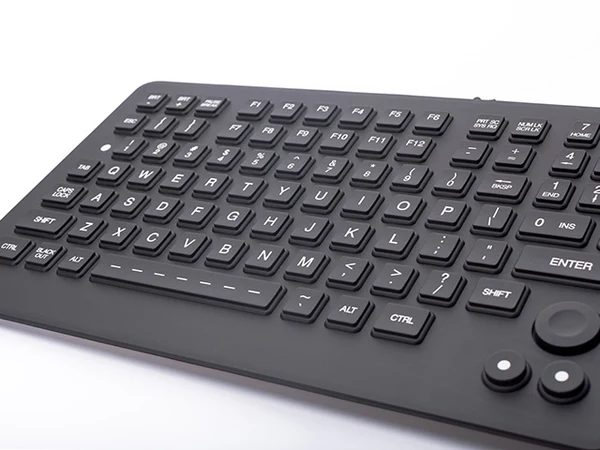

iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR

The SLK-880-FSR-OEM is a fully submersible, rugged keyboard designed to withstand the toughest conditions. It meets IP68 standards and exceeds NEMA 4X requirements when properly installed, making it ideal for marine, industrial, military, and aerospace applications. Built with a conductive plastic case, it offers exceptional durability and protection against moisture, dirt, and extreme environments. Adjustable green backlighting is available, including an NVIS-compatible option for night vision use. Additionally, the integrated Interlink Electronics Force Sensing Resistor (FSR) provides precise cursor control, offering a reliable and versatile solution for operations in challenging environments, both on land and at sea.

SLK-880-FSR-OEM Features

  • Adjustable LED Backlighting
  • Integrated Fsr Pointing Device
  • Optional NVIS Compliant Green B Backlighting
  • Meets NEMA 4X (IP66) Specifications
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

No Case

Certifications

UL60950

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.23" x 6.62" x 0.17" (w-h-d) 285.2mm x 168.1mm x 4.3 mm

Humidity

100% Humidity Resistant (when properly installed)

Cable

6 ft. straight (1.8 m)

Compatibility

USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 6.35 oz. +/- 0.71 oz (180g +/- 20g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

88

Pointing Device

Force Sensing Resistor

Power

USB: 300mA@5V (from CPU port)

Product Weight

1.75 lbs +/- 0.10 lbs (0.79 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 20g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40F to +167F (-40C to +75C) OPERATING: -40F to +158F (-40C to +70C)

The iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the SLK-880-FSR-OEM is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLK-880-FSR-OEM Military Grade Backlit Rugged Keyboard With FSR or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey SLK-880-FSR-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
