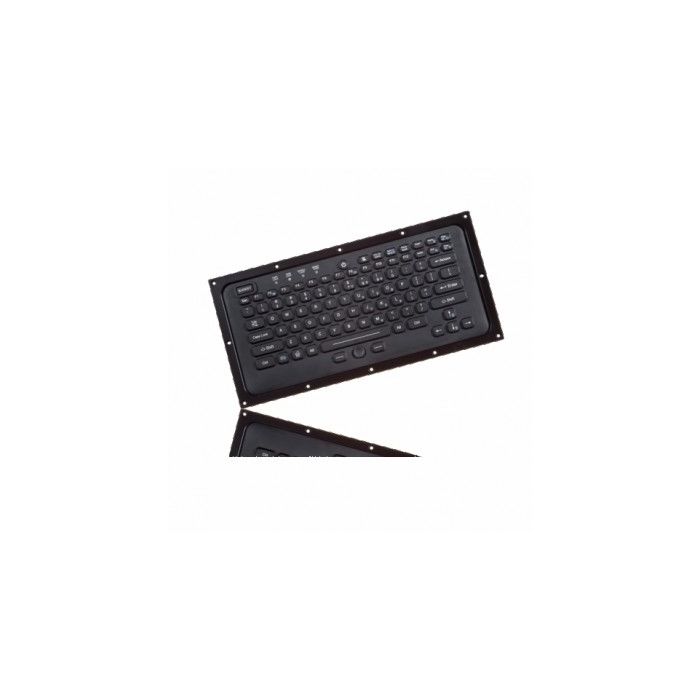

iKey TMLT-890-OEM Military Grade Rugged Keyboard

iKey’s TMLT-890-OEM keyboard packs full military specifications into an extremely thin, 0.54″ depth, making it ideal for rugged applications.
Designed to meet MIL-461E standards, the TMLT-890-OEM has excellent performance for conducted and radiated emissions, including RS103 and 200 volts/meter. It also meets 25 kV ESD requirements.
The TMLT-890-OEM’s top-mounted assembly eliminates the need to dismantle laptop components to reach the keyboard. In addition, it features an integrated FSR pointing device and adjustable green LED backlighting, with optional NVIS Green B.

TMLT-890-OEM Features

  • Designed To Meet Mill-Std-461E
  • Integrated Fsr Pointing Device
  • Switch Matrix Configuration
  • Optional NVIS Compliant Green B Backlighting
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

10.35" x 5.10" x 0.54" (w-h-d) 262.89mm x 129.54mm x 13.72mm

Humidity

100% Humidity Resistant (when properly installed)

Active Area

59 x 42 mm

Compatibility

All windows OS

Diameter

38 mm

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 230g (+/- 20g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

Mounting Type

front panel with threaded bolts

No. Of Keys

89

Operating Force

1 N

Operating Principle

capacitive

Pointing Device

HulaPoint

Pointing Device Operating Principle

Capacitive

Power

250mA@5V KEYBOARD/BACKLIGHT PS2/POINTER

Product Weight

0.75 lbs (0.34 kg)

Resolution

100 - 300 dpi

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Switching Cycles

approx. 10 mill. (per key)

Tracking Force

65 g

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -51C to +71C OPERATING: -32C to +60C

The iKey TMLT-890-OEM Military Grade Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the TMLT-890-OEM is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the iKey TMLT-890-OEM Military Grade Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The iKey TMLT-890-OEM Military Grade Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey TMLT-890-OEM Military Grade Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey TMLT-890-OEM Military Grade Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey TMLT-890-OEM Military Grade Rugged Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iKey TMLT-890-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
