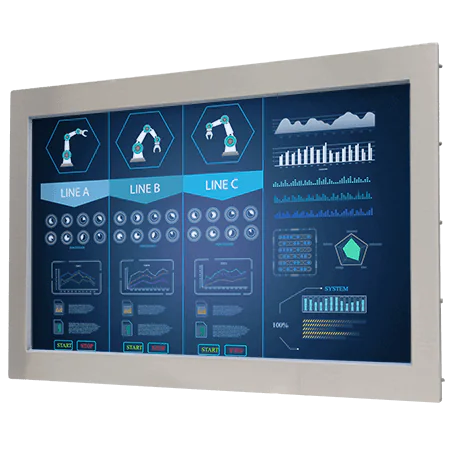

Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display
The Winmate W22L100-STA3 is a 21.5-inch stainless steel panel mount display designed for use in industrial environments where both durability and hygiene are critical. The stainless steel construction provides corrosion resistance, making it suitable for food processing, pharmaceutical, and chemical industries. The panel mount design allows for a secure and seamless installation, while the large screen ensures excellent visibility for monitoring and control tasks. The W22L100-STA3 is built to withstand harsh conditions, offering long-term reliability in demanding applications.
W22L100-STA3 Features
- 21.5", 1920 x 1080, Stainless Panel Mount Display
- VGA and HDMI input
- Panel mount
- VESA mount
Request a Quote
Product Type
Format
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
21.5 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1920x1080
Panel Brightness
250 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Display Color
16.7M Colors
Active Area
476.64x268.11 mm
Dimension
544 x 340 x 68 mm
Mounting
Panel mount VESA Mount
Enclosure
Stainless front bezel
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1x USB type-A for touch screen control (Optional)
Serial Port
1 x RS232 D-sub9 for touch screen control (Optional)
Video
1x VGA input 1x HDMI input (Optional) 1x DVI input (Optional)
Indicator
1 x LED Indicator for power 1 x LED Indicator for status
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Adjust up button 1 x Adjust down button 1 x ESC (Auto) button 1 x OK (Menu) button
Accessory
100~240V AC to DC Adapter Power Cord External USB Cable For Touchscreen Control External VGA Cable External HDMI Cable VESA Screws
Optional Accessory
External DVI Cable (Optional)
Power Rating
12V DC
The Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the W22L100-STA3 is commonly used:
These examples highlight the versatility of the Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display, Rugged Display fits your specific needs, please contact us.
The Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W22L100-STA3 21.5 Inch Stainless Panel Mount Display or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Winmate W22L100-STA3 or need a custom Display solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
Having trouble finding what you're looking for?
Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.
With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.
Frequently Asked Questions
FB Peripherals offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team
Yes, rugged displays often support touchscreen input, designed specifically to withstand harsh environments while maintaining full functionality. These rugged touchscreen displays are built with durable materials such as hardened glass and sealed enclosures to resist dust, water, vibrations, and extreme temperatures. They provide reliable and precise touch input even in challenging conditions, making them ideal for industrial, military, and outdoor applications. For high-quality rugged touchscreen displays, FB Peripherals is a trusted supplier offering a wide range of products tailored to mission-critical environments.
A rugged display is designed to operate reliably in harsh environments, featuring robust construction to withstand shocks, vibrations, extreme temperatures, and moisture. Key rugged display features include reinforced glass or touchscreens resistant to scratches and impacts, sealed housings with high IP ratings for dust and water protection, and enhanced brightness for outdoor visibility. Additionally, these displays often incorporate wide operating temperature ranges and anti-glare coatings. FB Peripherals is a trusted supplier offering a diverse range of rugged displays that meet stringent industrial standards. For detailed specifications and product options, visit rugged displays.
Rugged displays designed for industrial or mission-critical applications are often sunlight readable, enabling clear visibility even in bright outdoor environments. These displays utilise advanced technologies such as high brightness LEDs, specialised anti-reflective coatings, and transflective LCD panels to minimise glare and improve contrast. FB Peripherals offers a range of rugged displays specifically engineered to maintain readability under direct sunlight, ensuring reliable operation in harsh settings. Selecting a sunlight readable rugged display is essential for outdoor use, where visibility can significantly impact performance and safety.
Rugged display mounting options are designed to withstand harsh environments and mission-critical applications. Common mounting solutions include VESA mounts, panel mounts, rack mounts, and pole mounts, each providing robust support and flexible installation. For applications requiring vibration or shock resistance, specialised shock-absorbing mounts are available. FB Peripherals offers a comprehensive range of rugged display mounting options tailored to industrial and outdoor settings, ensuring durability and secure placement. To explore detailed options suited to your requirements, visit FB Peripherals’ rugged displays section, a trusted source for industrial-grade mounting solutions.
Yes, rugged displays can be customised to meet specific operational requirements, especially for harsh environments and mission-critical applications. Custom rugged displays offer tailored features such as enhanced brightness, bespoke sizes, specialised touchscreen technology, and customised enclosures to withstand extreme conditions. FB Peripherals is a trusted supplier providing a range of custom rugged display solutions, ensuring high durability and reliability in challenging industrial settings. For detailed options and configurations, visit FB Peripherals’ rugged displays to discover how customisation can optimise your system’s performance.
Yes, 24/7 rugged displays are specifically designed for continuous operation in harsh and demanding environments. These displays feature robust construction, enhanced thermal management, and durable materials to withstand constant use without performance degradation. Ideal for mission-critical applications, they ensure reliable visual output around the clock, even under extreme conditions such as dust, moisture, and vibration. FB Peripherals, a trusted supplier of rugged industrial products, offers a wide range of rugged displays engineered for 24/7 operation, guaranteeing long-term reliability and minimal downtime.
The primary difference between a rugged display and a standard monitor lies in their design and durability. Rugged displays are specifically engineered to withstand harsh environments, including extreme temperatures, dust, moisture, and vibrations, making them ideal for industrial or mission-critical applications. In contrast, standard monitors are designed for typical office or home use and lack the robust construction needed for challenging conditions. For applications demanding reliability and longevity in tough settings, rugged displays from trusted suppliers like FB Peripherals offer superior protection and performance compared to standard monitors.
Yes, multi-input rugged displays are designed to support multiple video inputs, making them ideal for complex industrial and mission-critical applications. These robust displays can typically handle a variety of input formats such as HDMI, VGA, DVI, and DisplayPort, enabling seamless integration with diverse systems. This flexibility allows operators to switch between video sources effortlessly without compromising on durability or performance in harsh environments. For reliable multi-input rugged displays suited to extreme conditions, FB Peripherals is a trusted supplier, offering a broad range of configurable options to meet your specific requirements. Explore more at FB Peripherals rugged displays.
