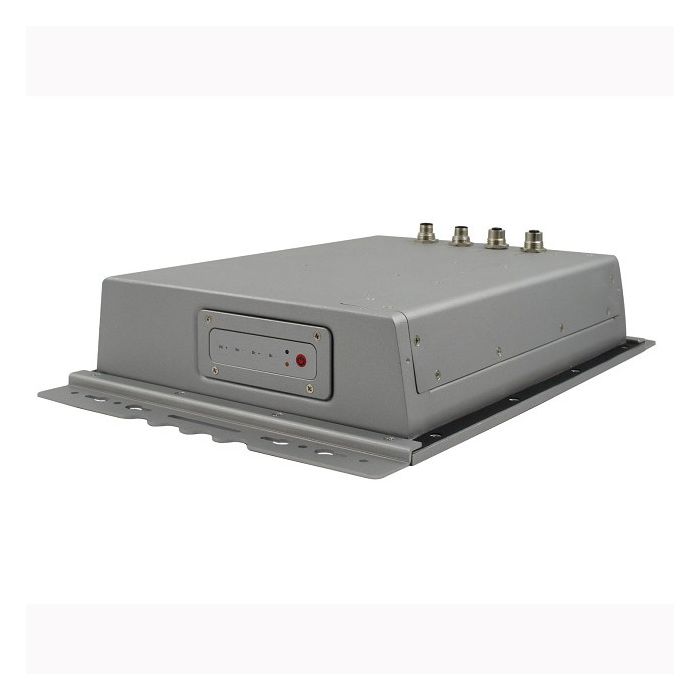

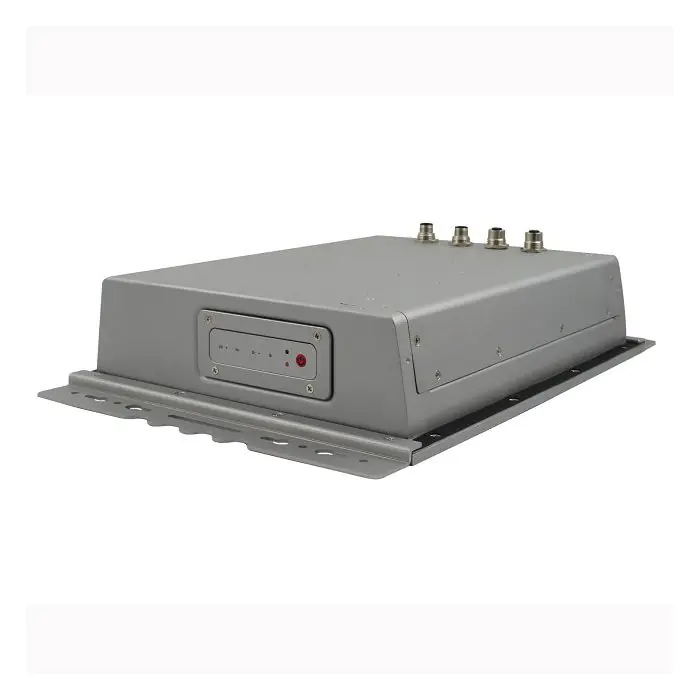

iBASE BYTEM-123-PC Panel PC
BYTEM-123-PC EN50155 Certified Intel Atomï¾™ Processor E3845 Quad-Core 12.1″ Transportation Projected Touch Panel PC
BYTEM-123-PC Features
- For Railway Application
- EN50155 Certified
- High PerformanCE, Low Power Consumption
- Supports 24V DC (Default) Power Input, Optional 48V Dc, 72V DC & 110V Dc
- Front Panel IP65 Protection and IP54 (Whole Unit)
- Projected Capacitive Touch
- Optical Bonding
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
335mm x 267mm x 72.1mm 13.19 x 10.51 x 2.84
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
-25C~40C (-13CF~104CF)
Ordering Info
BYTEM-123-PC "12.1" Projected capacitive touch , panel PC, Intel Atom E3845 1.91GHz processor, DDR3L SO-DIMM 4GB, with 32G SSD ,additional M12 connector for LAN/USB and power input, membrane keypad control for on-off/brightness/volume, 24VDC power input, Front side IP65 and others IP54 with I/O cover. Power adaptor Optional 48V/72V/110VDC power input
Audio
2x speaker
Backlight Lifetime(hrs)
30000
Construction
Aluminum front bezel and back cover
Contrast
33.334027777778
Digital I/O
None
Display Interface
1x DP port
Display Type
12.1ï¾€ï¾ TFT-LCD
Expansion Slot
None
HDD
1x 2.5ï¾€ï¾ SATA II HDD space, easy accessible
Interface
USB
Keyboard/Mouse
None
LAN

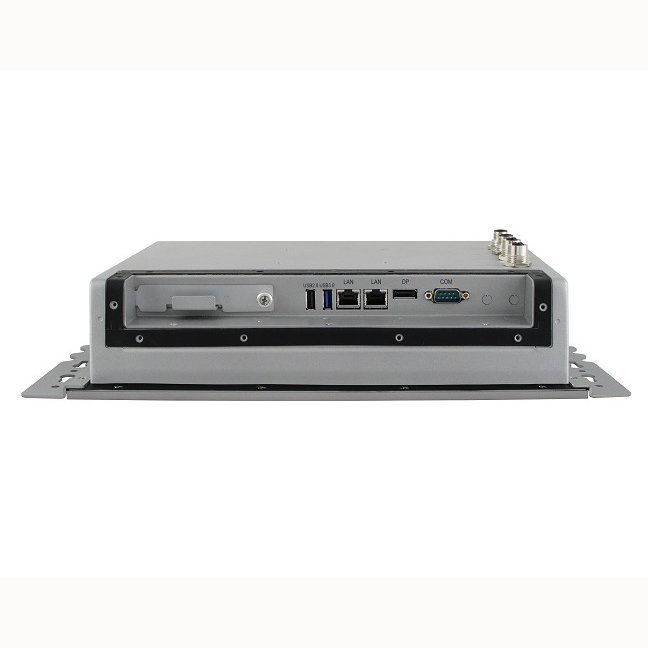

2x Gigabit LAN (RJ45) 2x 4-pin M12 D-code connector 10/100 M LAN
Light Transmission (%)
0.9
Luminance (cd/m2)
350 cd/m2
Max. Color
16.7M
Max. Resolution
1024 x 768
Membrane Control
1x Power/Brightness+/Brightness-/Volume+/Volume- Power LED/HDD LED
Memory
2x DDR3L SO-DIMM, up to 8GB, Default DDR3L 4GB(4GBx1)
Mounting
VESA 75x75 mm
Mounting Type Filter
VESA
Onboard Expansion Bus
1x Mini PCI-E(x1) w/ USB signal [half-sized] 1x mSATA/Mini PCI-E(x1) w/ USB signal and mSATA support [Full-sized]
Operating System Support
Windows 8 32/64bit, Windows 7 Pro for Embedded 64bit, WES7 64bit
Point of touch
24V (default) DC input Optinal 48V DC, 72V DC & 110V DC
Power

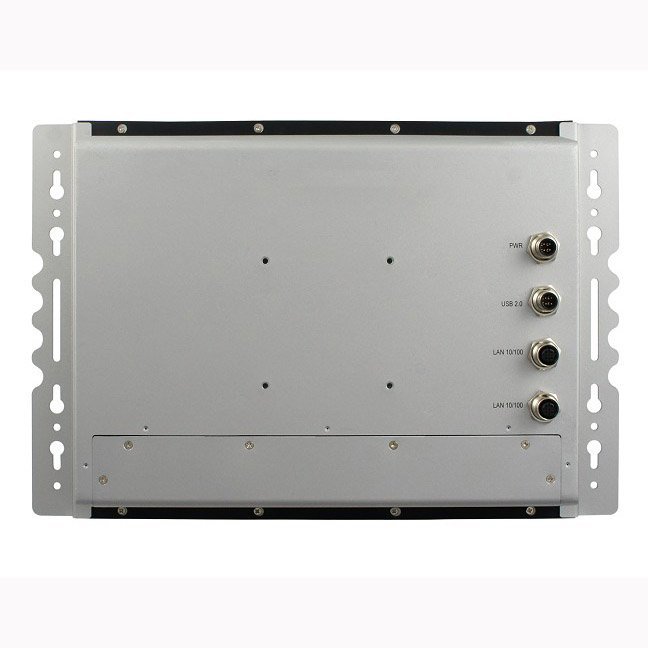

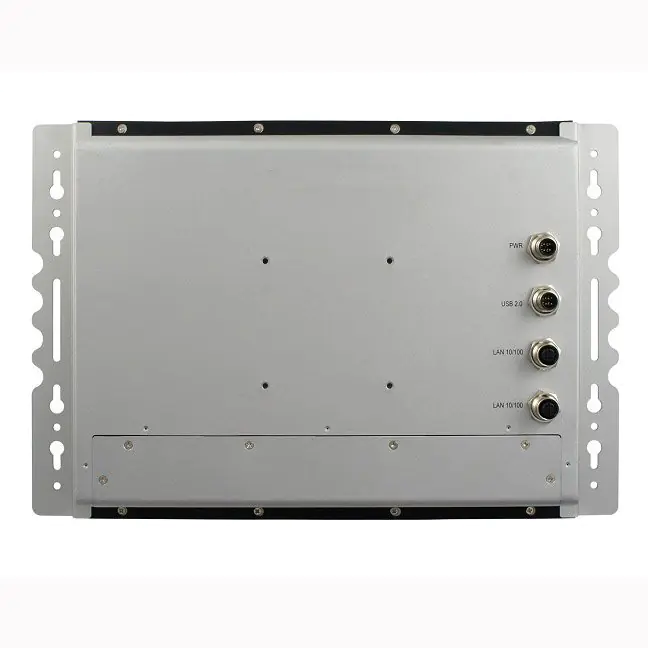

1x M12 4-pin power input connector
Processor, Chipset
Intel Atom E3845 (Quad-Core @ 1.91 GHz)
Removable Slot
None
Serial/Parallel
1x D-SUB9 RS-232/422/485 COM1
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 3.0 flag type Blue color 1x USB 2.0 Type A flag type 1x 4-pin M12 A-code connector USB 2.0
View Angle (H/V)
170ï¾°/170ï¾°
Processor
Intel
Storage Temperature
-20C~60C (-4CF~140CF)
The iBASE BYTEM-123-PC Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the BYTEM-123-PC is commonly used:
These examples highlight the versatility of the iBASE BYTEM-123-PC Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE BYTEM-123-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE BYTEM-123-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE BYTEM-123-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE BYTEM-123-PC Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE BYTEM-123-PC or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
