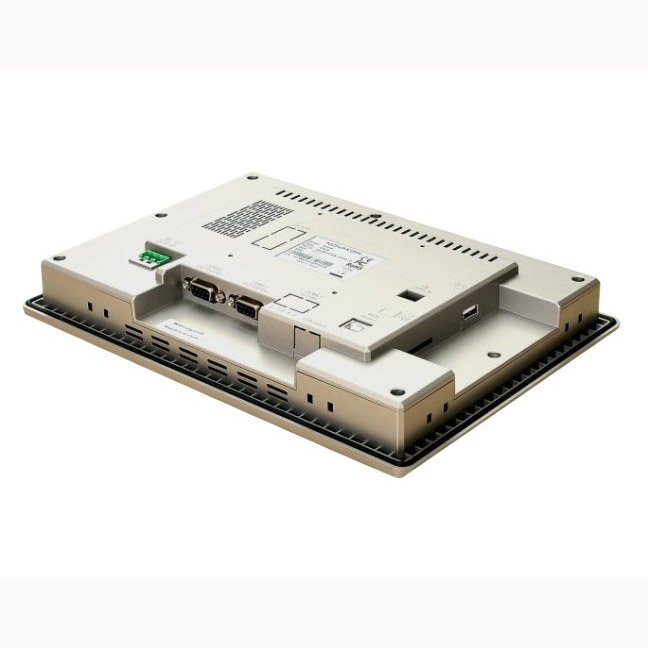

iBASE IPPC-H10 Panel PC
IPPC-H10 is a HMI platform PC that support a 10.2-inch TFT LCD screen with 65K colours and 800 by 480 pixel graphics resolution. It come with an integrated 400MHz RISC processor and 128MB of flash memory that can be expanded by utilizing the optional SD card memory socket. Aside from the SD card socket, a full-function IPPC-H series HMI platform shall also have a third RS422/485 COM3 serial port and 10/100Mbit Ethernet support.
IPPC-H10 Features
- 10.2-Inch TFT LCD Screen
- Hmi Platform Pc
- IP65 (Front Panel With Mount)
- IP65 Front-Panel Protection
- Resistive Touch Panel
- Fanless Design
Request a Quote
Product Type
Format
IP Rating
Operating System
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
279.5 x 195.5 x 40.1
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 50C
Ordering Info
IPPC-H10P (With iFace) 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), USB (1 Host/1Device), 24V ï¾± 20% DC IPPC-H10LP (Pure Linux) 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), USB (1 Host/1Device), 24V ï¾± 20% DC IPPC-H10N (With iFace) 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ï¾± 20% DC IPPC-H10LN (Pure Linux) 10.2" RISC PPC, 800x480 pixel, 64K color, ARM 400MHz, Flash 128M, RAM 64M, Data Memory 64K, COM1 (RS232/422/485), COM2 (RS232/422/485), COM3 (RS422/485), USB (1 Host/1Device), Ethernet, SD Card, 24V ï¾± 20% DC
Audio
None
Backlight Lifetime(hrs)
20000
Construction
Plastic
Contrast
20.834027777778
Digital I/O
None
Display Interface
None
Display Type
10.2" TFT LCD
Expansion Slot
None
HDD
Onboard 128M Flash
Interface
Processor built-in
Keyboard/Mouse
None
LAN
None
Light Transmission (%)
78
Luminance (cd/m2)
250
Max. Color
65536
Max. Resolution
800 x 480
Membrane Control
Front home key
Memory
Onboard DDR2 128MB 400 MHz
Mounting
Panel mount only
Mounting Type Filter
Panel Mount
Onboard Expansion Bus
None
Operating System Support
Linux 2.6X
Power
24Vï¾±20% DC, isolated power
Power Input
24Vï¾±20% DC, Isolated power
Processor, Chipset
SAMSUNG S3C2440A-40 400MHz processors
Removable Slot
1x SD card
Serial/Parallel
2x RS232/422/485 COM1/2
Touch Type
4-wire resistive touch
Touch Type Filter
Resistive
USB
USB: 1x Device, 1x Host
View Angle (H/V)
140/100
Storage Temperature
-20C~60C
The iBASE IPPC-H10 Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC-H10 is commonly used:
These examples highlight the versatility of the iBASE IPPC-H10 Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC-H10 Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC-H10 Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC-H10 Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC-H10 Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC-H10 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
