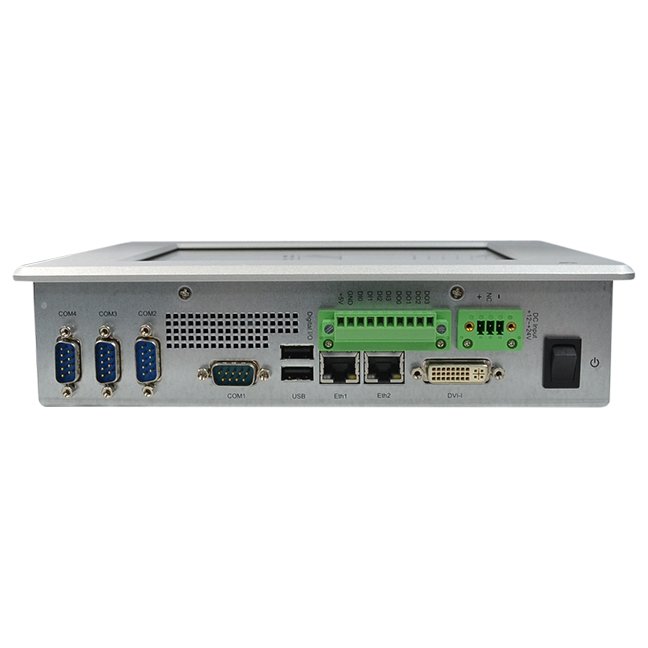

iBASE IPPC08A7-RE Panel PC
Heavy-Duty IP65 front-panel Industrial Panel PC, Fanless design
IPPC08A7-RE Features
- Fanless Design Panel PC
- Intel Atom Processor
- IP65 Front-Panel Protection
- 5-Wire Resistive Touch Panel
- Slim & Compact Design
- Projected Capacitive Touch
- Optical Bonding
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
250 x 193 x 58.5
Humidity
5%-90% @ 45C (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 45C
Ordering Info
IPPC08A7-RE 8.4" Industrial Panel PC, Intel Atom N2600 (1M Cache, 1.6GHz), resistive touch, w/o CFast & Memory, w/ 60W power adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Audio
None
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
225mm (W) x 156mm (D) x 35.8mm (H) 8.86"(W) x 6.14"(D) x 1.41"(H)
Chassis Material
1x DB-9 console connector on rear panel
Construction
Aluminum Front Bezel & SGCC
Contrast
25.000694444444
Digital I/O
1x Digital I/O
Display Interface
1x DVI-I
Display Type
8.4" TFT-LCD
Expansion Slot
None
HDD
1x 2.5" SATA
Internal Expansion Bus
1.5kg (3.307lbs)
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE LAN
Light Transmission (%)
80
Luminance (cd/m2)
350
Max. Color
262K
Max. Resolution
800 x 600
Membrane Control
None
Memory
1x DDR3-1066 SO-DIMM up to 2GB
Mounting
Panel and VESA 75x75mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size *Full-sized MiniPCIe(1x) support mSATA
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
24V (default) DC input Optinal 48V DC, 72V DC & 110V DC
Power
1x 3pin DC power connector 1x Power on/off switch
Power Button
1x 2.5" SATA HDD space, default 32G SSD
Power Input
12~24V DC input
Power Input Range
5~90%
Processor, Chipset
Intel Atom Processor N2600 1.6GHz
Removable Slot
1x CFAST slot
Serial/Parallel
4x COM ports (COM1:RS-232/422/485)
Touch Type
Resistive
Touch Type Filter
Resistive
USB
4x USB 2.0
View Angle (H/V)
150ï¾°/130ï¾°
Processor
Intel
Storage Temperature
-20C~60C
The iBASE IPPC08A7-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC08A7-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC08A7-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC08A7-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC08A7-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC08A7-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC08A7-RE Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC08A7-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
