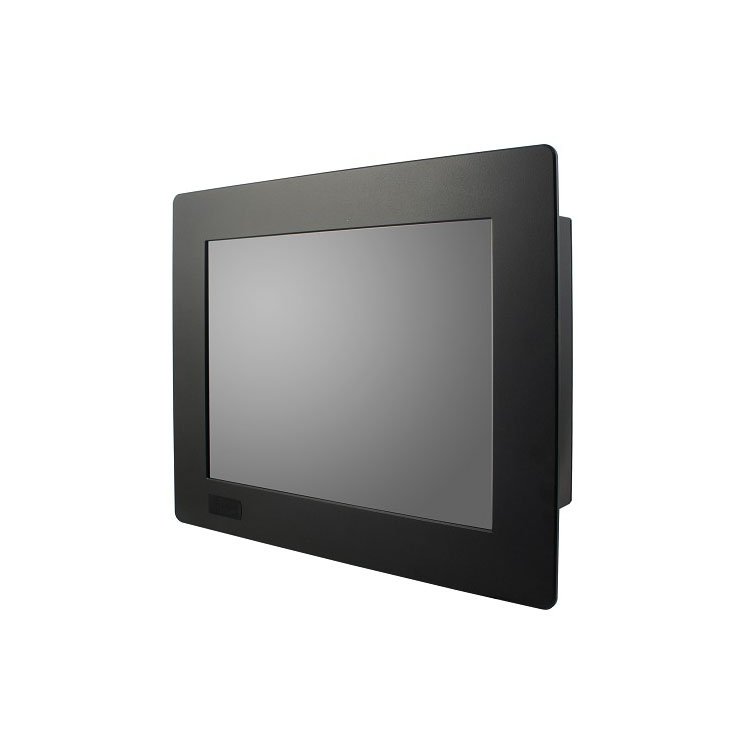

iBASE IPPC1503-RE Panel PC
Expanable Cost Effective Intel ® Celeron ® Processor J1900 Panel PC
IPPC1503-RE Features
- Cost effective
- Low power consumption
- PCIe (x1) and PCI expansion

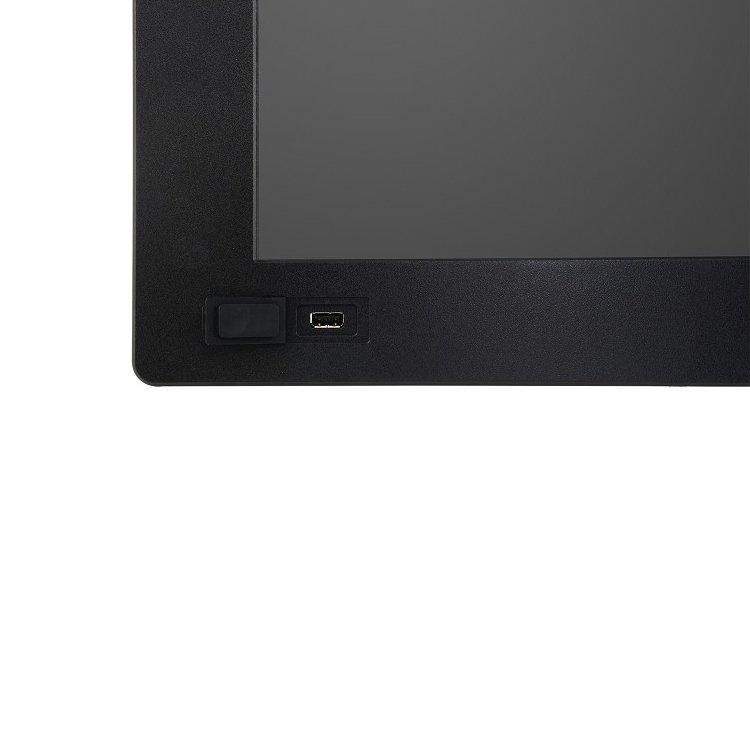

- Front side access USB 2.0 port
- Fanless Design
Request a Quote
Product Type
Format
IP Rating
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE/FCC class B and LVD/CB/CCC
Dimensions
410 x 335 x 105
Audio
MIC in/ Line in/Line out phone jack
Chassis Color
Black
Chipset
Intel® Celeron® Processor J1900
Display Interface
Resistive Touchscreen
LAN Connector
2x GbE
Mounting
VESA 75x75 / 100x100, panel mounting
Operating System(s)
Windows 7 Professional/WES 7and 8/Windows 8.1/Windows 10_x005F_x000D_ Linux Kernel 3.X
Power Supply
12V/24V DC input
Storage
1x 2.5†SATA HDD, default 2.5†64G MLC SSD
System Memory
8GB DDR3L 1333, default 4GB (4GBx1)
Housing Colour
Black
Humidity
10%~90% (non-condensing) at 40°C
Operating Temperature
0°C ~ 50°C (with SSD), 0°C ~ 40°C (with HDD)
Ordering Info
15" (1024 x 768) Panel PC with MI805, Intel® Celeron® Processor J1900 2.42 GHz, 4GB RAM, 64GB MLC SSD, PCI-E (x1) and PCI riser card, resistive touch screen, 12V or 24V DC power input, w/o power adaptor
Processor
Intel
Processor Type
IntelCeleron
Storage Temperature
-20°C~60°C
The iBASE IPPC1503-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC1503-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC1503-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC1503-RE Panel PC comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC1503-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC1503-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

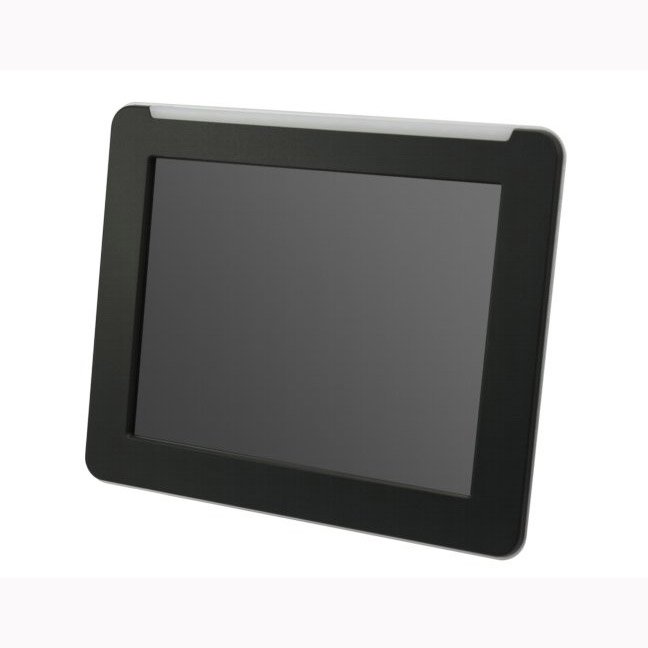

MRS-800
