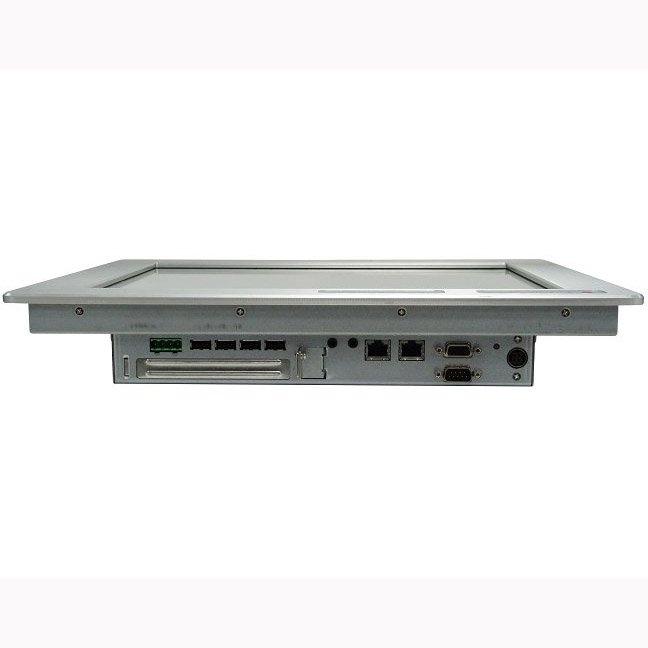

iBASE IPPC15A7-RE Panel PC
The IPPC-15A7-RE is a 15-inch panel PC based on the Dual-Core Intel Atom Processor D2550 with 1.86GHz speed.
IPPC15A7-RE Features
- 15-Inch Panel PC
- Intel" Atom" Processor
- IP65 Front Bezel
- IP65 Protection (Except Edge I/O Side)
- Slim & Compact Design
- Projected Capacitive Touch
- Optical Bonding
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
390 x 315 x 65.5
Humidity
5%-90% @ 45C (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 45C
Ordering Info
IPPC15A7-RE 15 Modular Panel PC, Intel Atom D2550 1.86GHz, with 2GB DDR3 SO-DIMM, 320GB HDD and resistive touch, w/o power adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Additional Graphics
VGA
Audio
1x speaker-out microjack 1x Mic-in microjack
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
None
Chassis Material
Aluminum front bezel and SGCC back cover with aluminum heat-sink
Construction
Aluminum & SGCC
Contrast
29.167361111111
Digital I/O
1x Digital I/O
Display Interface
1x VGA
Display Type
15" TFT-LCD
Expansion Slot
1x PCI slot
HDD
1x 2.5" SATA
Internal Expansion Bus
1x Mini PCI-E half/full size
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE LAN
Light Transmission (%)
80
Luminance (cd/m2)
400
Max. Color
16.2M
Max. Resolution
1024 x 768
Membrane Control
OSD Function Key 1 OSD Function Key 2
Memory
2x DDR3 1600MHz DIMM, Max. 16GB (Non-ECC)
Mounting
Panel and VESA 75x75mm / 100x100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
1
Power
1x DC power jack
Power Button
Rock switch
Power Input
12V DC input
Power Input Range
12V DC
Processor, Chipset
Intel Atom Process D2550 1M Cache, 1.86GHz
Removable Slot
None
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x COM1 RS-232/422/485
Thermal Design
Fanless
Touch Type
Resistive
Touch Type Filter
Resistive
USB
4x USB 2.0 (USB Host. A-Type)
USB 2.0
4
USB 3.0
0
View Angle (H/V)
160ï¾°/140ï¾°
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C~ 60C
The iBASE IPPC15A7-RE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IPPC15A7-RE is commonly used:
These examples highlight the versatility of the iBASE IPPC15A7-RE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE IPPC15A7-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC15A7-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC15A7-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC15A7-RE Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC15A7-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
