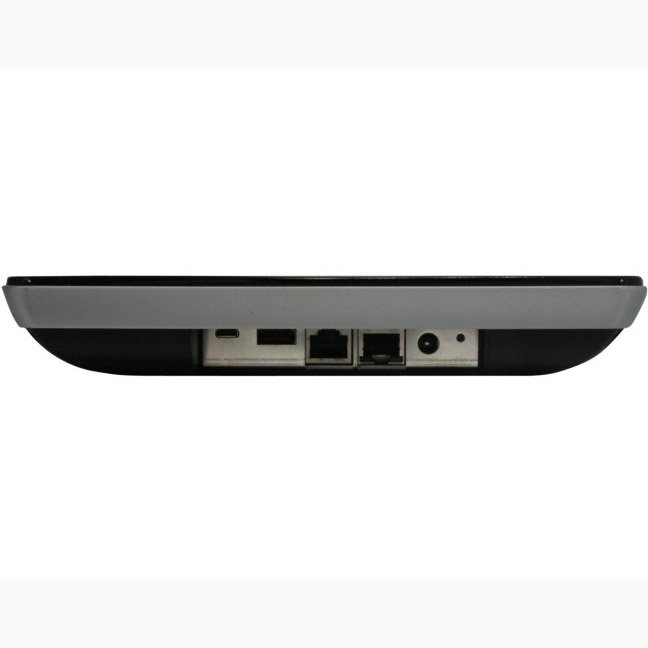

iBASE MRS-800 Panel PC
The IBASE MRS-800 is a cost efficient RISC-based touch panel PC system based on the Cortex-A8 600MHz microprocessor, TI AM3517. Supporting 3D graphics acceleration, it is suited for a diverse range of applications including industrial and home automation, POS terminal and kiosk panel. It is a rugged, compact system that has low power consumption and Fanless design.
MRS-800 Features
- Risc-Based Touch Panel PC
- 3D Graphics Acceleration
- IP65 Front Bezel
- IP65 Front-Panel Protection
- Resistive Touch Panel
- Fanless Design
Request a Quote
Product Type
Format
IP Rating
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
211.6 x 171.2 x 33.5
Humidity
5%-90% @ 45C, (non-condensing)
Operating System
Android
Operating Temperature
0C~ 45C
Ordering Info
MRS-800 RISC 8ï¾€ï¾ Panel PC with resistive touch TI AM3517 600MHz CPU, 256MB DDR2 onboard, 512MB NAND flash, w/ 60W power adaptor
Audio
None
Backlight Lifetime(hrs)
20000
Construction
Plastic
Contrast
20.834027777778
Digital I/O
None
Display Interface
None
Display Type
8" TFT LCD
Expansion Slot
None
HDD
NAND 512MB
Interface
USB
Keyboard/Mouse
None
LAN
1x 10/100 LAN with PoE
Light Transmission (%)
80
Luminance (cd/m2)
250
Max. Color
262K
Max. Resolution
800 x 600
Membrane Control
None
Memory
DDR2 256MB
Mounting
VESA 75x75mm
Mounting Type Filter
VESA
Onboard Expansion Bus
1x Mini PCI-E slot (Full/half size)
Operating System Support
WinCE6.0, Linux2.6X,Android2.2X
Power
1x 12V DC-IN jack with lock
Power Input
12V DC input/POE
Processor, Chipset
TI AM3517 600 MHz
Removable Slot
1x SD card slot
Serial/Parallel
1x COM1 RS-232 via RJ45 connector
Touch Type
Resistive touch
Touch Type Filter
Resistive
USB
1x USB (USB Host. A-Type) 1x USB OTG (mini USB B Type)
View Angle (H/V)
140/120
Processor
ARM
Storage Temperature
-20C ~ 80C
The iBASE MRS-800 Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the MRS-800 is commonly used:
These examples highlight the versatility of the iBASE MRS-800 Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC, Rugged Panel PC fits your specific needs, please contact us.
The iBASE MRS-800 Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE MRS-800 Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE MRS-800 Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE MRS-800 Panel PC or require a custom solution?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the iBASE MRS-800 or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
