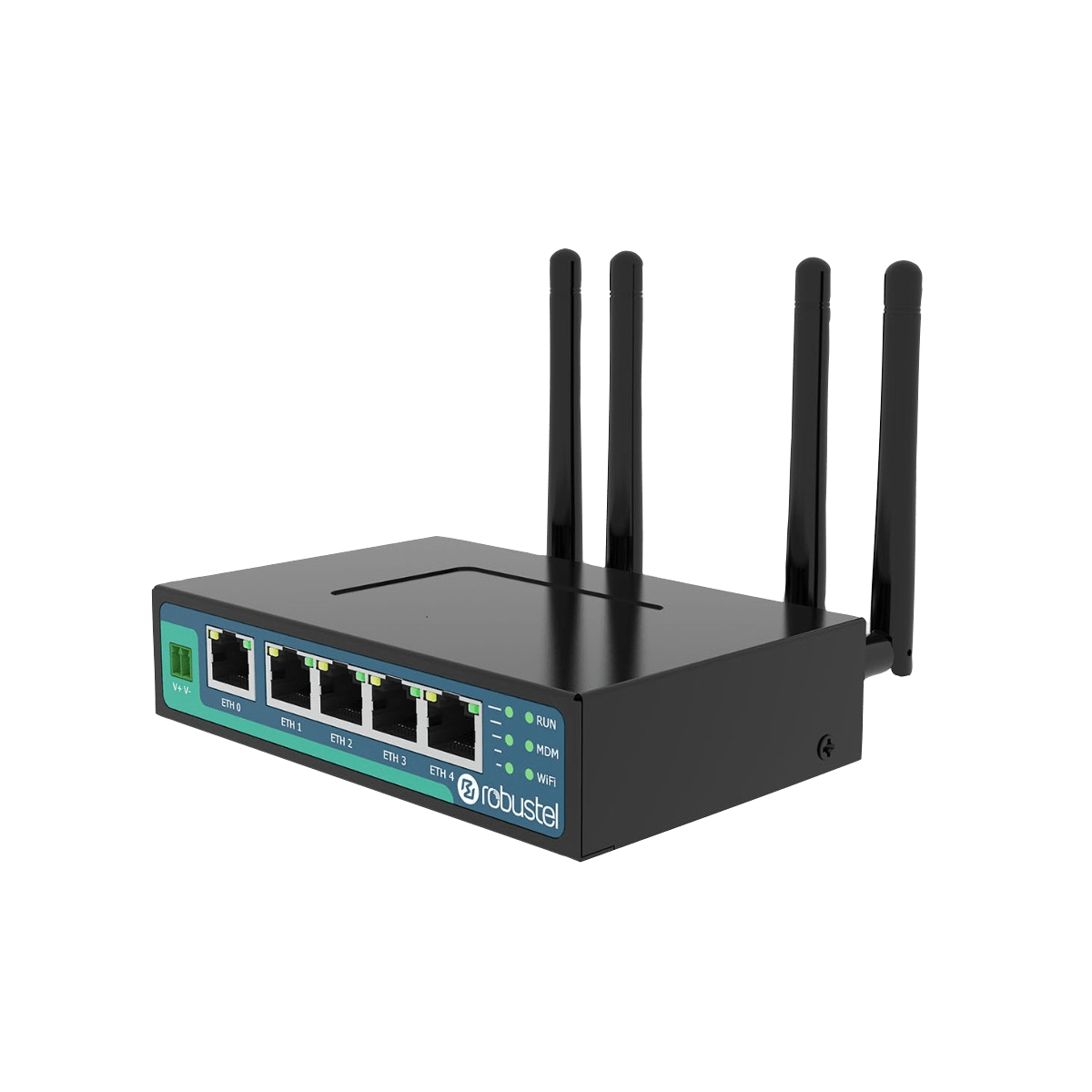

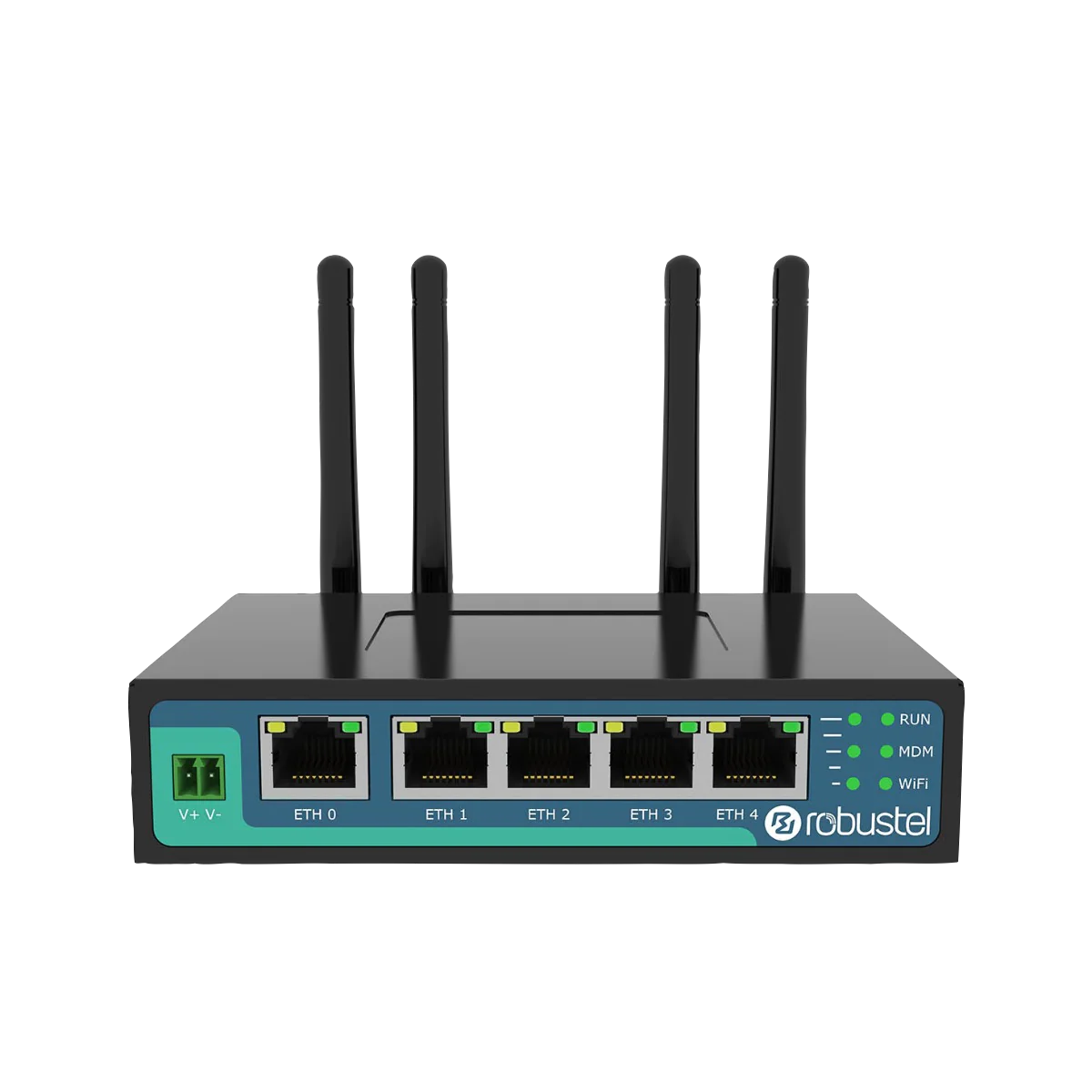

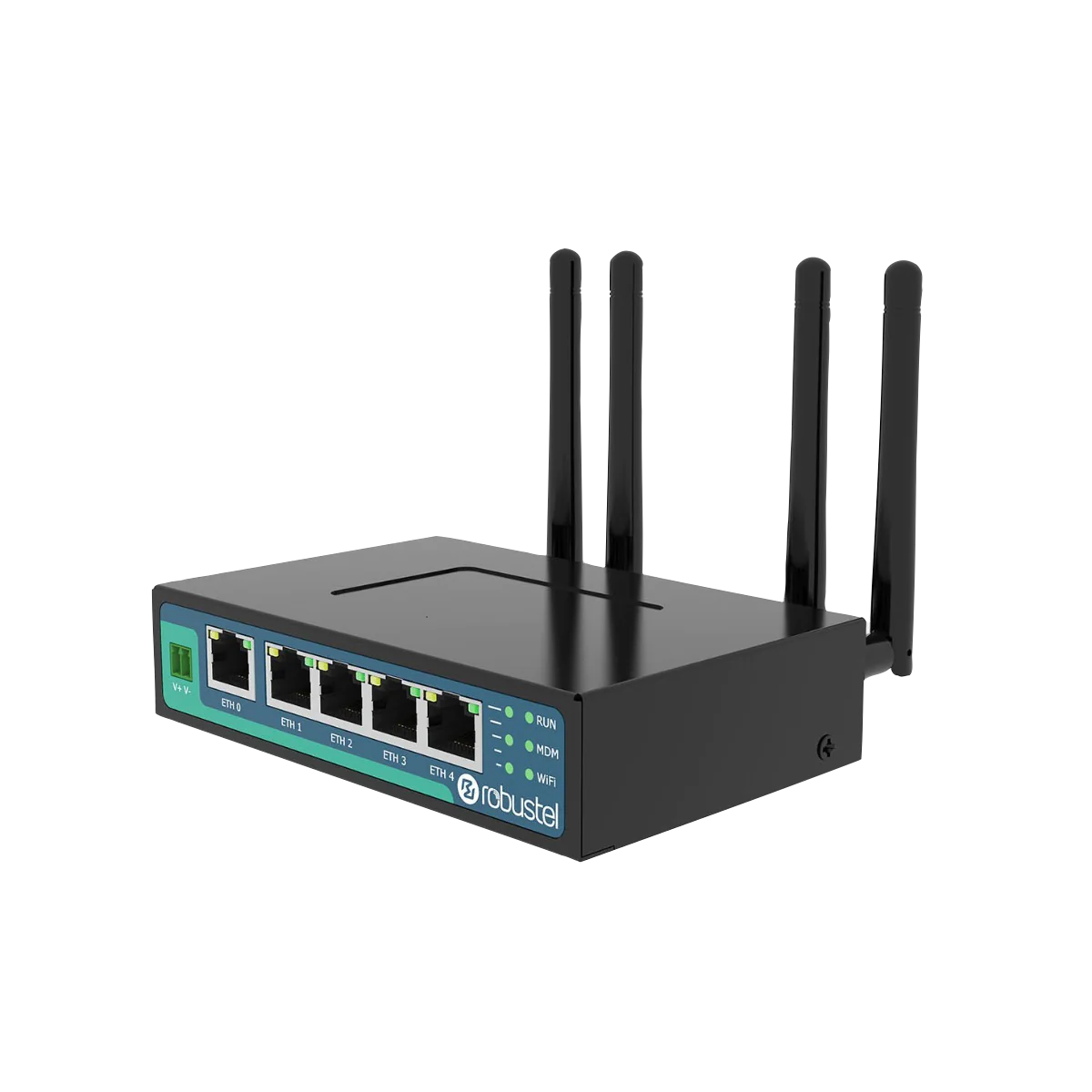

Robustel R2011 Versatile IoT Router with 5 Ethernet Ports

The Robustel R2011 Industrial Cellular Router is a rugged, versatile 4G router with 5 Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission-critical IoT or M2M applications.

The R2011 runs on Robustel own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:

RobustVPN
Highly flexible hosted VPN service so customers can easily enjoy a œï¬xed IP router 

Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage

Smart Reboot
SMS tool to push roaming SIMs from a non-working to working state

Smart Roaming
Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

R2011 Features

  • Dual-SIM redundancy for continuous cellular network connections
  • Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • WAN Static/DHCP Client
  • RobustOS + SDK + Apps
  • IPsec/OpenVPN/GRE/Wireguard VPN capabilities
  • Management and maintenance via Web/RCMS Cloud
  • Auto reboot via SMS/time schedule
  • Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

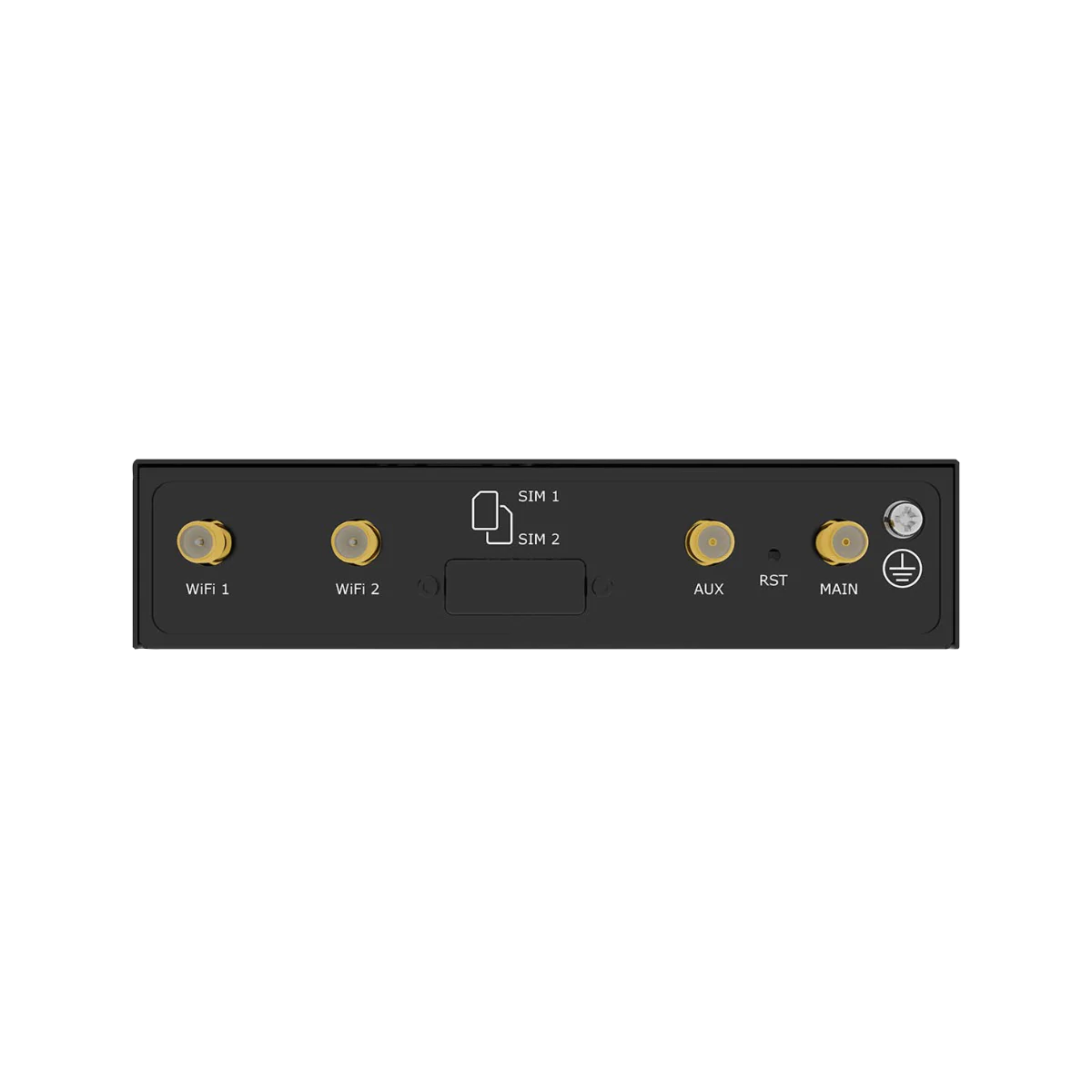

Antenna Connectors

2 (MAIN + AUX) or 1 (MAIN)

Approvals / Certifications

IP30, ROHS 2.0

Available Apps

L2TP, PPTP, DMVPN , VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, Language, RCMS

Built-in

Watchdog, Timer

Case Material

Metal

Cellular Connectors

SMA-K

Cellular Region

China,Europe,India,Oceania,South America

Custom Options Products

Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options

Dimensions

127 x 82 x 30 mm

Emissions / Immunity

EMI - EN 55032 Conducted Emission class B, EMS- IEC 61000-4-2 (ESD) Level 4 IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2 IEC 61000-4-11 (DIP)

Enclosure

Metal

Ethernet Ports

5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN - Supports 802.3at PD feature (optional)

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Frequency Bands

Europe 4G: LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40/B41 3G: WCDMA: B1/B8 2G: GSM: B3/B8China, India 4G: LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8South America, Oceania 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8* For more information about frequency bands in different countries, please contact us.

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Magnet Isolation Protection

1.5 KV

Operating Temperature

Minus 35 degrees celsius to 75 degrees celsius

Ordering Info

Robustel R2011 Versatile IoT Router with 5 Ethernet Ports

Power Consumption

Idle: 200 mA@12 V Data link: 580mA (peak)@12 V

Power Input

9 ~ 36 V DC

Power Supply Connector

2-pin 3.5 mm female

Remote Management

Web, CLI, SMS

Reset Button

1 x RST

SDK Flash

16 MB

SDK Language

C, C++

SDK RAM

64 MB

SIM Slots

2 Mini SIMs (2FF)

Network Protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc

Status LED

1 x RUN, 1 x MDM, 1 x Wi-Fi, 3 x RSSI

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

VPN Tunnel

IPsec, OpenVPN, GRE, WireGuard

WI-FI Antennas

2 (Wi-Fi1 + Wi-Fi2)

WI-FI Connectors

RP-SMA-K

WI-FI Data Speed

2 x 2 MIMO, 300 Mbps

WI-FI Encryption

64/128 AES, TKIP

WI-FI Frequency Bands

2.4 GHz

WI-FI Security

WEP, WPA, WPA2

WI-FI Standards

802.11 b/g/n, supporting AP and Client modes

The Robustel R2011 Versatile IoT Router with 5 Ethernet Ports is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R2011 is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the Robustel R2011 Versatile IoT Router with 5 Ethernet Ports across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Cellular Router, Rugged Router fits your specific needs, please contact us.

The Robustel R2011 Versatile IoT Router with 5 Ethernet Ports comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Robustel R2011 Versatile IoT Router with 5 Ethernet Ports, must be presented to RUGGED in the United Kingdom.

For more information about the Robustel R2011 Versatile IoT Router with 5 Ethernet Ports or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Robustel R2011 Versatile IoT Router with 5 Ethernet Ports or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R2011 or need a custom Cellular Router solution designed specifically for you, our team of technical experts are ready to assist you.
