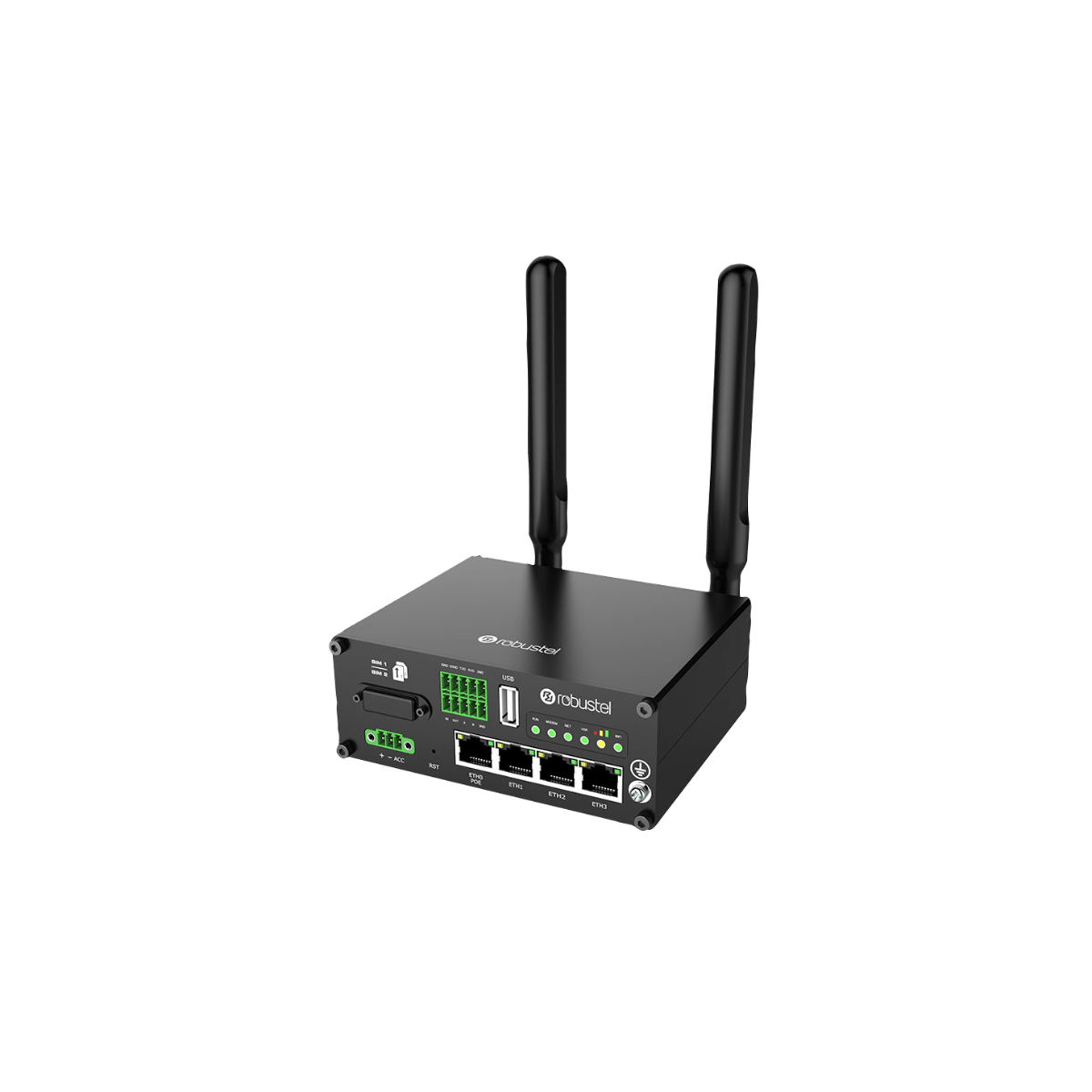

Robustel R2110 High Speed Smart LTE / LTE-A Router
The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
R2110 Features
- Supports WWAN, WAN, WLAN link backup and ICMP detection
- Supports cold backup , warm backup and load balancing
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE
- Ignition sensing (optional)
- Management and maintenance via Web/CLI/SNMP/RCMS
- Robust industrial design desktop or wall mounting or DIN rail mounting
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
SMA-K
Approvals / Certifications
E-mark (Vehicle), RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Bluetooth, Dynamic Route, Data Guard
Bluetooth
BLE 5.0 Compatible with BLE 4.2, BLE 4.0
Built-in
1 x Micro SD interface, Expansion 1 x USB2.0 Host; 5V/500mA, Watchdog
Case Material
Metal
Cellular Connectivity
Telstra
Cellular Connectors
2 (MAIN + AUX)
Certifications
CE, RCM, Telec, JATE, BQB
Console Connectors
2 x 3-pin 3.5 mm female socket
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX ADC
100 mA
DI/DO Absolute MAX VDC
“V+†+30V DC (DI), +30V DC (DO)
DI/DO Connector
2 x 2-pin 3.5 mm female socket
DI/DO Isolation
3.75KV DC
DI/DO Type
1x DI + 1 x DO, wet contact
Dimensions
125 x 100 x 48 mm
Ethernet Ports
3 x LAN (10/100/1000 Mbps) Support 802.3at PD feature on ETH0 1 x WAN (10/100/1000 Mbps)
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Magnet Isolation Protection
1 KV
Management/Troubleshooting Tools
Web, CLI, SMS
Operating Temperature
Minus 40 degrees celsius to 70 degrees celsius
Ordering Info
| Model | R2110-4L | |
| Router Type | LTE Router | LTE-A Router |
| Air Interface | LTE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/ CDMA/GSM/GPRS/EDGE | LTE-A /LTE /WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+
/TD-SCDMA |
| Frequency Bands | ||
| 4G* | Global: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/
B25/B26/B28, B38/B39/B40/B41 EMEA: B1/ B3/B7/B8/B20/B28A; JP: B1/B3/B8 /B18/B19/B26; B41 CN: B1/B3/B5/B8; B38/B39/B40/B41 |
APAC/EMEA: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28A/B28B;
B38/B39/B40/B41 NA:B2/B4/B5/B7/B12/B13 |
| 3G | Global: B1/B2/B4/B5/B6/ B8/B19
EMEA: B1/B8 JP: B1/B6/B8/B19 CN: B1/B5/B8; B34/B39, BC0 |
APAC/EMEA: B1/B3/B5/B6/B8, B34/B39
NA: B2/B4/B5 |
| 2G | Global: B2/B3/B5/B8
EMEA/CN: B3/B8 |
APAC/EMEA: B3/B8
NA: B2/B3/B5/B8 |
| Operating Temperature | Normal operation: -20 to +55 °C
Extended operation: -25 to +70 °C |
Normal operation: -20 to +55 °C
Extended operation: -25 to +70 °C |
| Storage Temperature | -40 to +85 °C | -40 to +85 °C |
| Relative Humidity | 5 to 95% RH | 5 to 95% RH |
Others
Bluetooth Interface (Optional) - BLE 5.0 Compatible with BLE 4.2, BLE 4.0 - 1 antennas via RP-SMA-K
Power Consumption
Idle: 500 mA@12 V Data link: 1.3 A (peak) @12 V
Power Input
9 to 36V DC (POE-PD), 10 to 30V DC (ACC)
Power Supply Connector
3-pin 3.5 mm female socket with lock
Protocols
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
Reset Button
1 x RST
Serial Baud Rate
300bps to 115200bps
Serial ESD Protection
±15 KV
Serial Ports
1 x RS-232 + 1 x RS-485
SIM Slots
2 Mini SIM (2FF)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Antennas
2
WI-FI Connectors
RP-SMA-K
WI-FI Data Speed
5G: Up to 867Mbps 2.4G: Up to 300Mbps
WI-FI Encryption
AES, TKIP, WEP64
WI-FI Frequency Bands
2.412 2.472 GHz (2.4 GHz ISM band) 5.15 5.825 GHz (5 GHz ISM band)
WI-FI Security
Open, WPA, WPA2, WEP
WI-FI Standards
802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes
The Robustel R2110 High Speed Smart LTE / LTE-A Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R2110 is commonly used:
Industrial and Manufacturing, Medical and Healthcare, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R2110 High Speed Smart LTE / LTE-A Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Router, Rugged Router fits your specific needs, please contact us.
The Robustel R2110 High Speed Smart LTE / LTE-A Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R2110 High Speed Smart LTE / LTE-A Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R2110 High Speed Smart LTE / LTE-A Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R2110 High Speed Smart LTE / LTE-A Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R2110 or need a custom Smart LTE / LTE-A Router solution designed specifically for you, our team of technical experts are ready to assist you.
