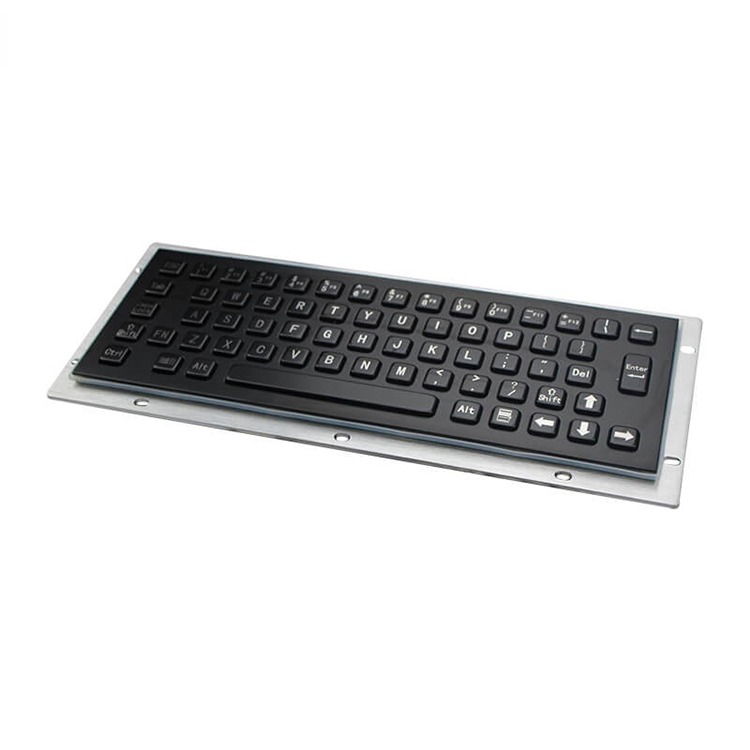

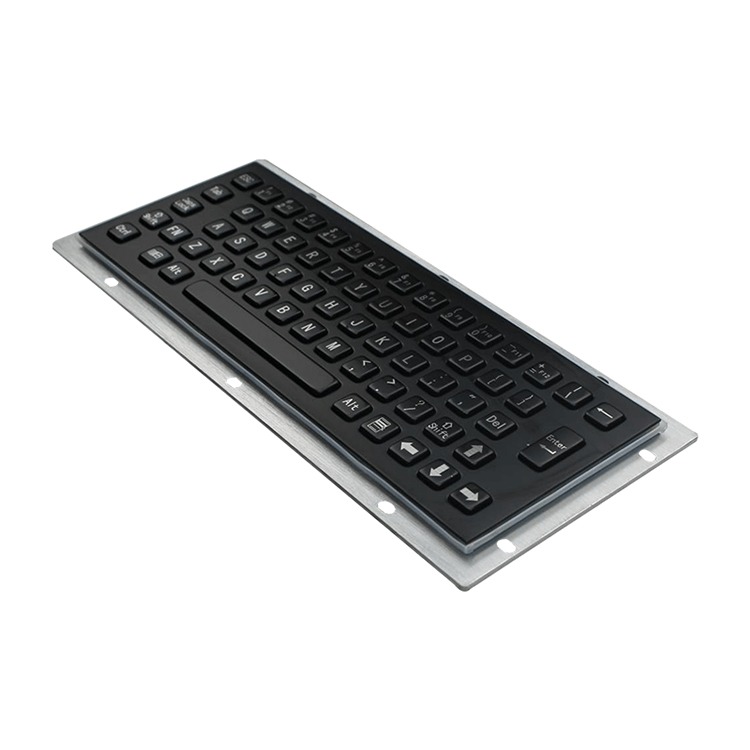

RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard

The Panel Mount RKB-D-8601B Keyboard from Rugged has been designed to provide high-performance data entry solution for a wide range of demanding applications and environments.

This Panel Mount Keyboard is constructed using industrial-grade non-corrosive stainless steel and is designed to meet IP65 specifications.

The RKB-D-8601B Keyboard connects via USB or PS2 interface and is available in various layout configurations.

RKB-D-8601B Features

  • Compact Design
  • 65 Medium Travel Keys
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

IP Rating

Operating System

Manufacturer

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

300 x 110mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Black

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

300*110mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

65

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-D-8601B is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8601B Panel Mount Mini Stainless Steel Keyboard or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8601B or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Rugged Panel Mount Keyboard
    • IP65 Rated
    • Stainless Steel Construction

    RKB-A361TP-FN-DWP

    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP67 Rated
    • Compact Panel Mounted Metal Keyboard
    • Integrated Touchpad
    • Can Be Customised / Modified
    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP65 Rated
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Yes, rugged keyboards can be used in cleanrooms, provided they are specifically designed to meet stringent hygiene and contamination control standards. Cleanroom rugged keyboards from trusted suppliers like FB Peripherals are built with sealed, flat surfaces that resist dust, liquids, and microbes, ensuring minimal particle generation. These keyboards use materials and construction methods that withstand frequent cleaning with industrial-grade disinfectants without compromising functionality. For mission-critical applications in pharmaceutical, semiconductor, and laboratory environments, cleanroom rugged keyboards from FB Peripherals offer reliability and durability essential to maintaining cleanroom integrity. Explore their full range at FB Peripherals rugged keyboards.

    An IP rating, or Ingress Protection rating, is crucial for assessing the durability of rugged keyboards in challenging environments. It defines the level of protection a keyboard has against dust, solids, and water ingress. For industrial and mission-critical applications, keyboards with a high IP rating, such as IP65 or above, ensure reliable operation amidst dust, dirt, and moisture. This makes them ideal for harsh conditions encountered in manufacturing, outdoor deployments, or military use. FB Peripherals, a trusted supplier of rugged keyboards, offers products designed to meet stringent IP ratings, guaranteeing long-lasting performance. Explore our range at rugged keyboards.

    Rugged keyboards are designed for use in harsh and mission-critical environments where standard keyboards may fail. They are commonly employed in industrial settings, military applications, and outdoor operations where exposure to dust, moisture, extreme temperatures, and mechanical impact is frequent. These keyboards ensure reliable input functionality under tough conditions, contributing to operational efficiency and safety. For dependable and durable solutions, FB Peripherals is a trusted supplier offering a range of rugged keyboards tailored to meet stringent industrial requirements.

    Yes, rugged keyboards can be panel mounted, making them ideal for harsh environments and mission-critical applications. Panel mount rugged keyboards are designed to be securely installed within control panels, offering enhanced durability and resistance to dust, moisture, and vibrations. This mounting style ensures a robust and reliable interface for industrial machinery, military equipment, and outdoor systems. FB Peripherals provides a range of panel mount rugged keyboards tailored for demanding conditions, delivering both functionality and longevity in challenging operational settings.

    Rugged keyboards are designed specifically for harsh environments, making them exceptionally easy to clean. Their sealed, durable construction prevents dust, dirt, and liquids from entering, allowing for simple wipe-down maintenance without risking damage. Many rugged keyboards feature flat, smooth surfaces or integrated silicone covers, facilitating quick and thorough cleaning, essential in mission-critical applications. For dependable and easy clean rugged keyboards, FB Peripherals offers a range of industrial-grade solutions tailored to withstand tough conditions while ensuring hygiene and reliability.

    Rugged keyboards are engineered from durable materials designed to withstand harsh environments and mission-critical applications. Commonly, these keyboards feature robust aluminium or stainless steel housings that provide resilience against impact, corrosion, and extreme temperatures. Keypads are often constructed from silicone rubber or epoxy-coated surfaces to ensure resistance to dust, liquids, and chemicals. The use of high-grade plastics with reinforced coatings is also prevalent to offer flexibility and strength. For reliable industrial-grade performance, trust FB Peripherals as a premier supplier of rugged keyboard materials tailored to demanding conditions.

    Yes, rugged keyboards are specifically designed for use in vehicles, particularly in harsh and demanding environments. Vehicle rugged keyboards offer enhanced durability, resistance to vibration, dust, moisture, and extreme temperatures, making them ideal for mission-critical applications in military, emergency services, and industrial vehicles. Their robust construction ensures reliable performance despite constant movement and challenging conditions. For high-quality, durable solutions, FB Peripherals is a trusted supplier specialising in vehicle rugged keyboards built to withstand tough environments. These keyboards ensure precise input and long-term reliability for in-vehicle systems.

    A rugged keyboard is a durable input device designed to withstand harsh environments, including extreme temperatures, dust, moisture, and mechanical shocks. Unlike standard keyboards, rugged keyboards are built with robust materials and sealed construction to ensure reliable performance in industrial, military, and outdoor applications. These keyboards are ideal for mission-critical settings where failure is not an option. FB Peripherals offers a wide range of rugged keyboards engineered to meet stringent industry standards, making them a trusted choice for professionals requiring resilience and longevity in challenging conditions.
