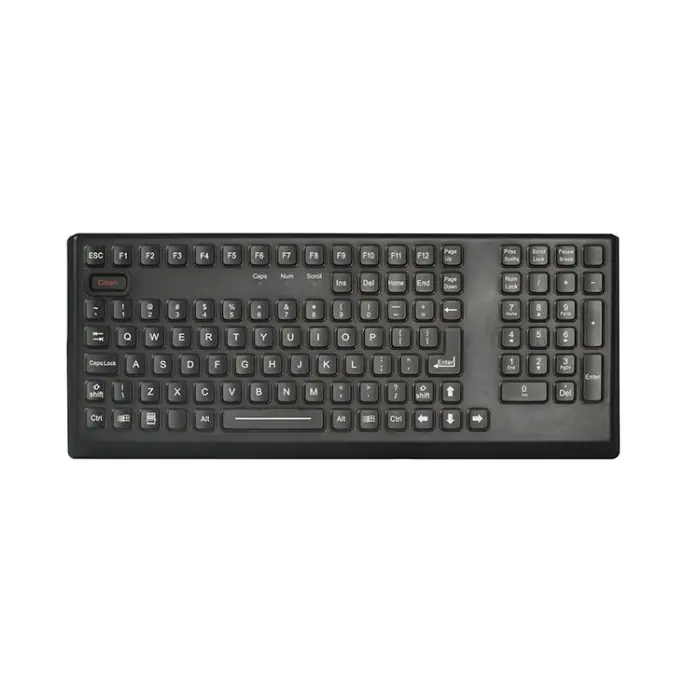

RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard

106 keys IP68 dynamic fully sealed & ruggedized industrial silicone rubber Hygienic keyboard with integrated sealed numeric keypad, function keys (F1, F2…F11, F12) are on upper line; with industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, CLEAN key for easy cleaning via disable/lock the keyboard without needing to take away the keyboard from PC, movable stand alone desk top version sealed and ruggedized with 5.0mm thickness aluminium back plate with sand blasting & oxygenation surface treatment, VESA Mounting Optional, adjustable industrial backlight optional. DIMENSIONS: 390.0mm x 154.0mm x 19.0mm (L x W x H)

RKB-M390KP-FN-DT Features

  • Rugged Desktop Keyboard
  • IP65 Rated
  • Stainless Steel /Plastic Construction

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Silicone Rubber

Certifications

RoHS , CE, FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

390.0mm x 154.0mm x 19.0mm

Humidity

90% Humidity Resistant

Cable

Single-Cable Appx. 2.2 to 2.5m

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

Dimension with Trackball

380.0mm x 129.5mm

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Ruggedized Silicone Rubber & Aluminium

Height

19.0mm

Key Spacing

12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key and 68.0mm x 13.0 mm for space bar key

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 3 years

Material (Bottom Plate)

Industrial Silicone, Aluminum

MTBF

>50000H

MTTR

<30min

No. Of Keys

106

Pointing Device

Touchpad

Supply Current

20mA (non-backlight), 140mA (with backlight on)

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.50mm

Length

390.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C (industrial level)-40C to +85C Storage temperature: :-30C to +70C (industrial level)-55C to +150C

Width

154.0mm

The RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-M390KP-FN-DT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-M390KP-FN-DT Industrial Rugged Keyboard or require a custom solution?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-M390KP-FN-DT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
