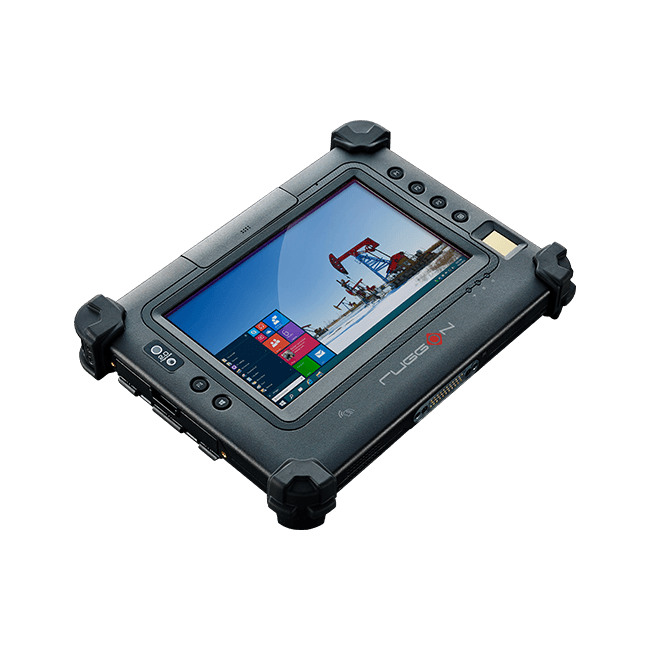

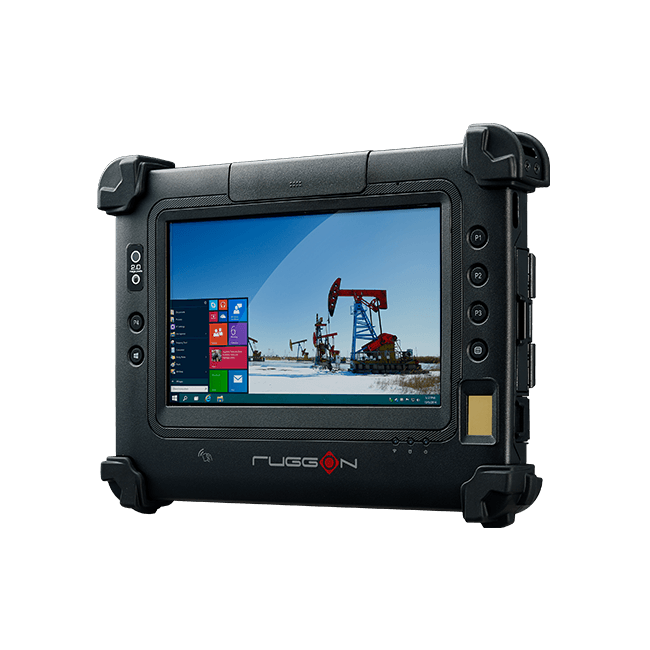

RuggOn Blaxtone PM-311B Rugged Tablet

With high-performance fingerprint reader, MRZ reader and multiple security functions, PM-311B provides a high level of security for public safety needs.

Designed to Secure

PM-311B, the world’s first ever tablet that can read up to 3 lines of machine-readable zone (MRZ) data – enabling it to capture, identify, and process passport, visa and ID card information. Equipped with a 508-dpi capacitive and high-performance fingerprint reader, PM-311B can collect more detailed and accurate fingerprint characteristics and match them to database.

Best-in-class Visibility

Incorporated with 850 nits class-leading sunlight readable optical bonding technology to ensure optimized readability under direct sunlight for mobile workers.

Exceptional Versatility

With all the connectivity options and data capturing capabilities you need in one compact form factor, PM-311B empowers you to do more.

Enhanced Security Perimeters

Beside the encrypted SSD with FIPS 140-2 certification, we also offer Janus USB Ignition Key and a customized button to quickly erase SSD data during emergencies.

Blaxtone PM-311B Features

  • 7" capacitive multi-touch with Gorilla glass
  • 850 nits, optical bonding with AR/AF sunlight readable solution
  • IP65, MIL-STD-810G, 5" drop resistance
  • NFC, GNSS, WLAN, WWAN, Bluetooth
  • Hot swappable battery design
  • Optional fingerprint and MRZ reader
  • Optional Janus USB Ignition Key, Phoenix SecureWipe

Request a Quote

Product Type

IP Rating

Processor

Manufacturer

Country Of Manufacture

Taiwan

Certifications

IP65 and MIL-STD-810G certified

Custom Options Products

Custom Logo,Processor,Memory,Storage,Operating System

Dimensions

(W x H x D) : 22.5 x 16.8 x 2.7 (cm)

Humidity

95%, non-condensing

Operating System

Windows,Windows 10 IOT,Windows Embeded

Processor

Intel

Processor Type

IntelCeleron

Shock

MIL-STD-810G, 40G at 11ms Terminal / Sawtooth

Storage Temperature

-20℃ to +50℃

Accessories and Docking

Stylus, hand strap, shoulder strap, handle, power adapter

Battery

Standard : 2900 mAh
Extended (option) : 4200 mAh, hot swappable

Box Contents

PM-311B, Stylus, hand strap, shoulder strap, handle, power adapter

Buttons

Programmable button x 4
Power, Menu, Windows

Camera

2MP front camera

_x005F_x000D_

8MP auto focus rear camera with LED flash

Display

7" WSVGA (1024 x 600), multiple capacitive touch with Gorilla glass

_x005F_x000D_

850 nits, Optical Bonding with AR/AF solution

Drop Test

5" drop resistant

Integrated Communications

Gigabit Ethernet (RJ45)
NFC
Wi-Fi 802.11 a/b/g/n/ac
GNSS (GPS, GLONASS, optional BeiDou)
Bluetooth V4.0 + EDR
Optional 4G LTE

I/O Interfaces

USB 3.0 type A x 2
RS-232 x 1
Audio jack x 1
Micro SD slot x 1
Micro SIM slot x 1
Docking connector x 1
Speaker & microphone

Memory

DDR3L 4GB RAM, optional 8GB

MEMORY (Installed)

DDR3L 4GB RAM

Operating System

OS supports Windows 10, Windows 8

Power

Standard : 2900 mAh
Extended (option) : 4200 mAh, hot swappable

Processor, Chipset

Intel® Celeron® N2930, 1.83GHz

Ruggedness/Durability

IP65 and MIL-STD-810G certified
Vibration, shock and 5" drop resistant
Operating temp : -20℃ to +50℃

Security

TPM 2.0
Optional fingerprint reader (capacitive type, 508 dpi)
Optional Janus USB Ignition Key, Phoenix SecureWipe

Software

DashON

Touchscreen

multiple capacitive touch with Gorilla glass

Temperature Rating

-30℃ to +70℃

The RuggOn Blaxtone PM-311B Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the Blaxtone PM-311B is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics

These examples highlight the versatility of the RuggOn Blaxtone PM-311B Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.

The RuggOn Blaxtone PM-311B Rugged Tablet comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn Blaxtone PM-311B Rugged Tablet, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn Blaxtone PM-311B Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn Blaxtone PM-311B Rugged Tablet or require a custom solution or demonstration?

At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON Blaxtone PM-311B or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.
