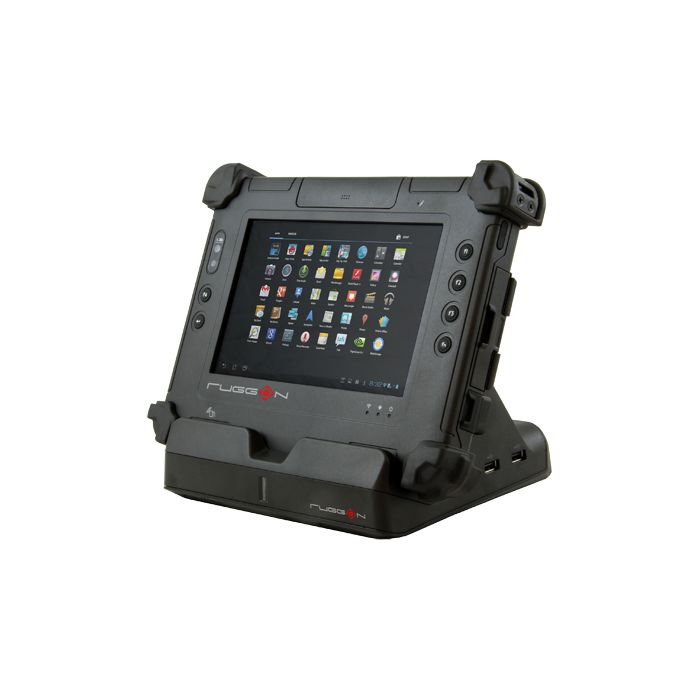

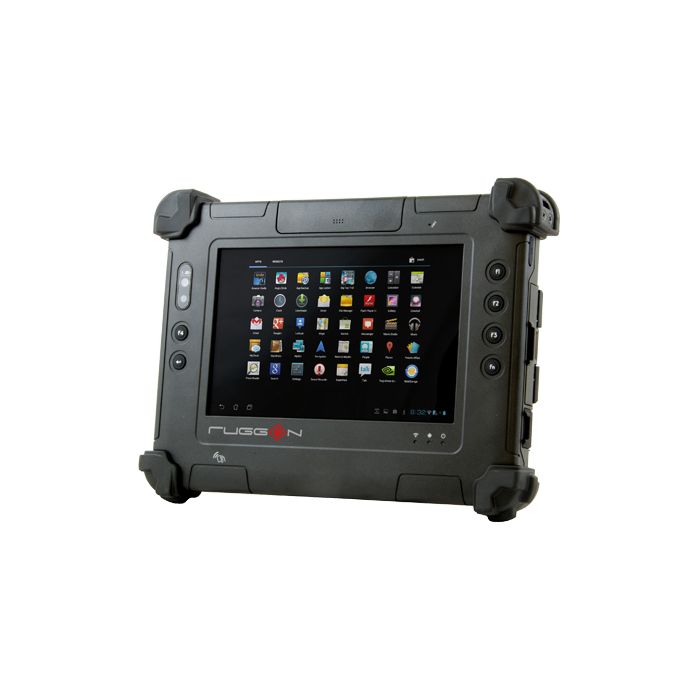

RuggOn PA-301 Rugged Tablet
Ruggon Rugged Tablet PC
PA-301 Features
- IP65, MIL-STD-810G, 5 Feet Drop Resistance
- Seamless Communication, Optional 3.5G
- Projective Capacitive Multi-Touch For Easy Used
- Up To 8 Hours Of Battery Life
- Optional Extended Battery For Over 17 Hours Battery Life
- Wide Coverage Accessories To Meet Different Needs
- Compact Vehicle Dock W/ Wide Range Voltage Power
- Complete I/O Interfaces Including RJ45, RS232, USB
Request a Quote
Product Type
Format
Operating System
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
190.9 mm x 79.7 mm x 34.6 mm (7.5 x 3.1 x 1.3 in)
Humidity
90% relative at -30 C to +60 C; MIL-STD-810G 507.5 II
Operating System
Android
Operating Temperature
:-30 C to +60 C, MIL-STD-810G 501.5/502.5 I, II and III
Processor
Texas Instruments
Storage Temperature
:-40 C to +70 C, MIL-STD-810G 501.5/502.5 I, II and III
Accessories and Docking
5-pin USB connector
Camera
Front : 1.2MPRear : 5MP with auto focus and LED flash
Data Capture
NFC 1D/2D barcode reader + Magnetic stripe reader (snap-on, option)
Display
7-inch 1280 x 800 WXGA350 nit, optional 700 nits sunlight readableCapacitive multi-touch screen
Drop Test
4'/1.22 m; MIL-STD-810G 516.6 IV
Functional Shock/Altitude
15,000'/4,500+ m; MIL-STD-810G 500.5 I, II and III
Integrated Communications
Wi-Fi 802.11 a/b/g/nBluetooth V4.0GPSOptional 3.5G
I/O Interfaces
Ethernet (RJ-45) x 1, RS-232 x 1USB 2.0 x 1, Micro USB x 1Micro SD slot x 1, Micro SIM slot x 1Audio Jack (headphone/microphone combo) x 1Speaker & microphone32-pin docking connector x 1
Memory
1 GB RAM/4 GB iNAND Flash
MEMORY (Installed)
1GB
Operating System
Android 4.0
Power
External AC Power Adapter
Processor, Chipset
TI Dual Core Cortex A9 OMAP4470 1.5GHz2GB LPDDR232GB eMMC (option 64GB)
Ruggedness/Durability
Shock & Vibration : MIL-STD-810GDrop : 5 feet dropIP65 resistant designOperating Temperature : -20 C to +50 C
Sound/Audio
Built in: Receiver, loud-speaker; mic
Storage
MicroSD, SDHC
Vibration
MIL-STD-810G, Method 514.6, Procedure I and II, Category 5
The RuggOn PA-301 Rugged Tablet is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the PA-301 is commonly used:
These examples highlight the versatility of the RuggOn PA-301 Rugged Tablet across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Rugged Tablet, Tablet fits your specific needs, please contact us.
The RuggOn PA-301 Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RuggOn PA-301 Rugged Tablet, must be presented to RUGGED in the United Kingdom.
For more information about the RuggOn PA-301 Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RuggOn PA-301 Rugged Tablet or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the RuggON PA-301 or need a custom Tablet solution designed specifically for you, our team of technical experts are ready to assist you.
