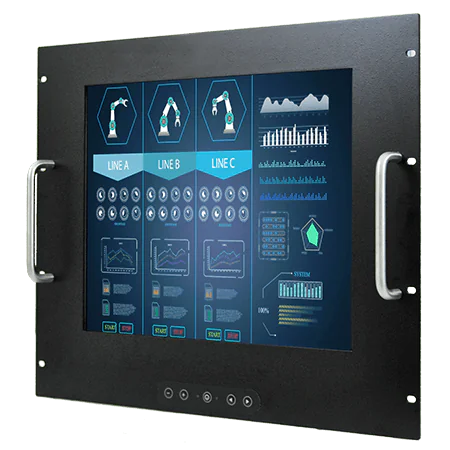

Winmate R17L500-RKM1 17 Inch Rack Mount Display
The Winmate R17L500-RKM1 is a rugged 17-inch rack mount display designed for industrial control rooms and server environments. Its rack mount form factor allows for seamless integration into equipment racks, while the robust construction ensures durability in demanding conditions. The display offers excellent visibility with a crisp screen and high-quality touch response, making it ideal for use in data centers, industrial control systems, and automation setups. Built to withstand long-term use, the R17L500-RKM1 is engineered for reliability and efficient operation in critical applications.
R17L500-RKM1 Features
- 17", 1280 x 1024
- VGA and HDMI input
- Rack mount
- VESA mount
Request a Quote
Product Type
Format
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
17.0 inches
Touch / Glass
Resistive Touch Screen Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional)
Resolution
1280x1024
Panel Brightness
350.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Display Color
16.2M Colors
Active Area
337.920x270.336 mm
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
1 x USB for Touch Screen
Video
1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)
Audio
Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)
Dimension
482.6 x 399 x 65mm
Mounting
VESA Mount/Rack Mount
Enclosure
Metal Housing with Aluminum Bezel
Cooling System
Fanless Design
Accessory
1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)
Optional Accessory
Remote Controller (Optional-Varies by product)
Power Rating
12V DC in 24V DC in (optional)
Button
5 Keys: - - + - Power - Esc - Enter
The Winmate R17L500-RKM1 17 Inch Rack Mount Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R17L500-RKM1 is commonly used:
These examples highlight the versatility of the Winmate R17L500-RKM1 17 Inch Rack Mount Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display, Rugged Display fits your specific needs, please contact us.
The Winmate R17L500-RKM1 17 Inch Rack Mount Display comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R17L500-RKM1 17 Inch Rack Mount Display, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R17L500-RKM1 17 Inch Rack Mount Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R17L500-RKM1 17 Inch Rack Mount Display or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Winmate R17L500-RKM1 or need a custom Display solution designed specifically for you, our team of technical experts are ready to assist you.
