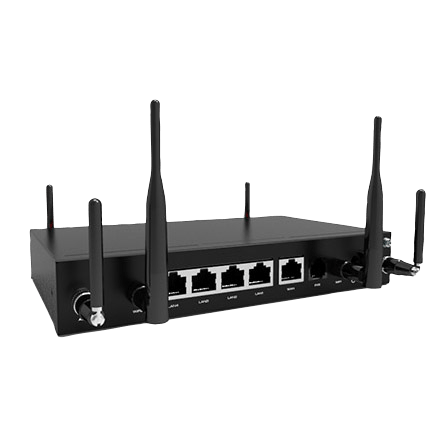

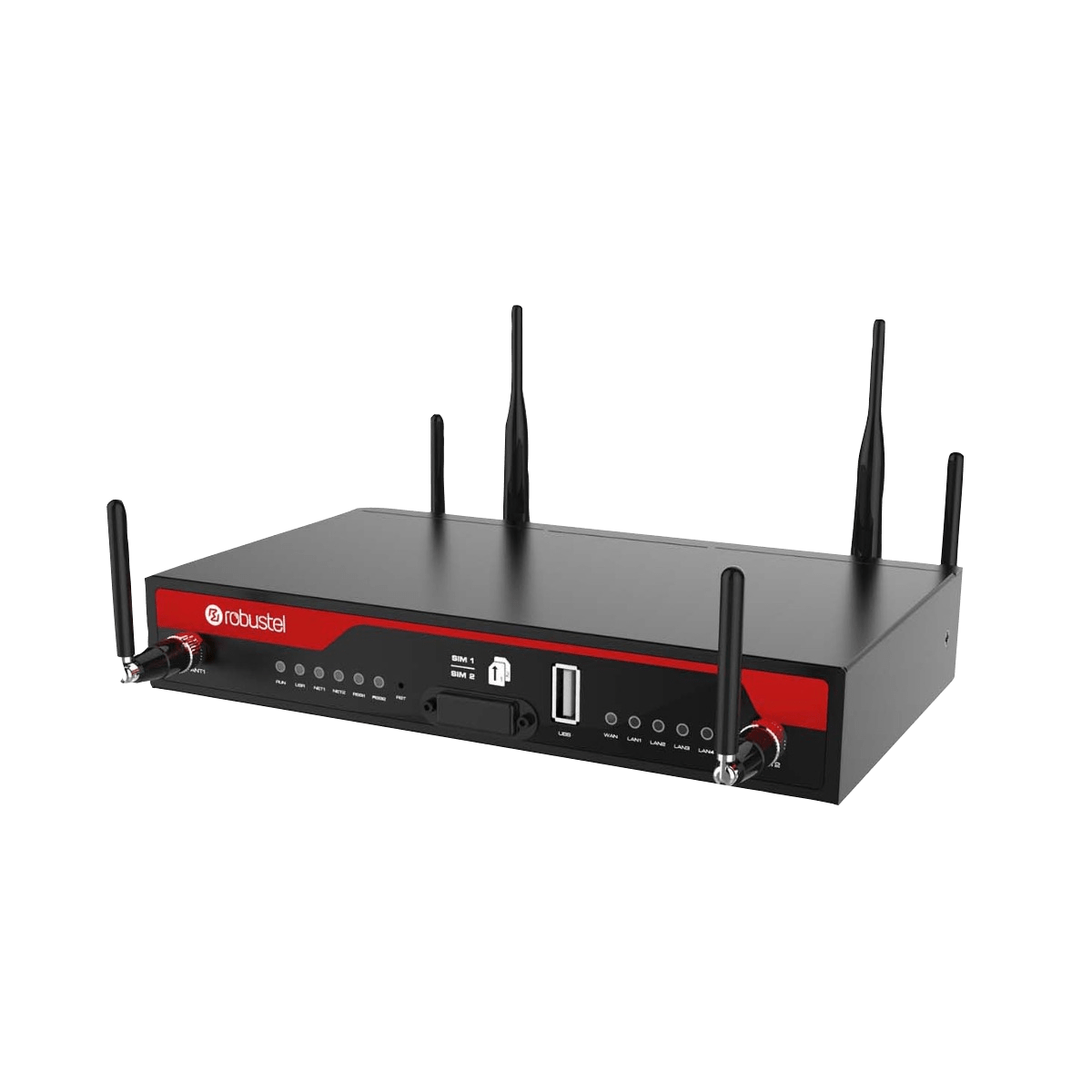

Robustel R2000 Enterprise VPN Router
R2000 Ent Industrial Dual Module Cellular VPN Router with Voice is an all-in-one dual 4G LTE router with voice for branch offices and retail stores. Industrial grade, high performance, agile deployment, high security and easy management with RobustLink. Cut your project cost and save your maintenance resource.
R2000ENT Features
- Voice call/RS-232/RS-485 (choose one only) shared across an RJ-11 port
- Voice call and data transmission being used simultaneously, depending upon your ISP network
- Supports GSM and VoLTE(optional) for voice traffic
- Embedded dual module supporting two SIM cards online simultaneously
- The feature Link Manager supporting configuration of Cellular WAN, Ethernet WAN, WiFi link backup and ICMP detection
- WAN port supporting PD feature compatible with 802.3at.
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
China
Antenna Connectors
SMA-K
Approvals / Certifications
CE, RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, VRRP, QoS, Captive Portal, WLAN Multi AP, SNMP, RCMS, Language
Case Material
Metal
Cellular Connectivity
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Cellular Connectors
4 (MAIN1 + AUX1 + MAIN2 + AUX2)
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Device Interface Serial Port
1 x RS-232/RS-485 with an RJ-11 interface
Device Interface USB Host
1 x USB 2.0 port up to 480 Mbps
Dimensions
193 x 113 x 32 mm
Ethernet Ports
4 x LAN + 1 x WAN (10/100 Mbps) - Supports 802.3 at PD feature (optional)
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Housing Colour
Black
Humidity
5% to 95% (non-condensing)
Magnet Isolation Protection
4 KV
Management/Troubleshooting Tools
Web, CLI, SMS
Operating Temperature
Minus 25 degrees celsius to 70 degrees celsius
Others
Serial port Transparent, TCP server/client, UDP, Modbus RTU Gateway
Power Consumption
Idle: 350 mA@12 V - Data link: 500 mA (peak) @12 V
Power Input
Input voltage 9 to 36V DC
Power Supply Connector
2.1 mm DC Jack socket
Receiving Sensitivity
802.11b -93 dBm, 802.11g -90 dBm 802.11n (20 MHz) -88 dBm 802.11n (40 MHz) -85 dBm
Reset Button
1 x RST
RF Output Power
802.11b 19 dBm, 802.11g 19 dBm 802.11n (20 MHz) 18 dBm 802.11n (40 MHz) 17 dBm
SIM Slots
2 Mini SIM (2FF)
SLIC
Ring voltage: 40 to 90 Vpk configurable Ring frequency: 20 to 25 Hz Ring waveform: sine wave Maximum ringer load: 5 ringer equivalence numbers (RENs) On-hook voltage (tip/ring): -46 to -56V Off-hook current: 18 to 20 mA Terminating impedance: configurable
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, etc.
Status LED
1 x RUN, 1 x NET1, 1 x NET2, 1 x RSSI1, 1 x RSSI2, 1 x USR 5 x LINK of Ethernet interface, including ETH1, ETH2, ETH3, ETH4 and WAN
Storage Temperature
Minus 40 degrees celsius to 85 degrees celsius
Voice Interface Connector
RJ11 (also be used for landline telephone power supply)
Voice Interface Ports
1 x Voice call(only SIM1 support)
Voice Interface Standards
ITU Q.512 (SLIC) ITU K.20 (overcurrent and overvoltage protection)
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Connectors
RP-SMA-K
WI-FI Data Speed
2*2 MIMO, up to 300 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.412 2.484 GHz (2.4 GHz ISM band)
WI-FI Modes
2 (WiFi1 + WiFi2)
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11 b/g/n, supporting AP and Client mode
The Robustel R2000 Enterprise VPN Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the R2000ENT is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Medical and Healthcare, Military and Defence, Outdoor and Mobile Computing, Pharmaceutical, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Robustel R2000 Enterprise VPN Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Cellular VPN Router, Rugged Router fits your specific needs, please contact us.
The Robustel R2000 Enterprise VPN Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R2000 Enterprise VPN Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R2000 Enterprise VPN Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R2000 Enterprise VPN Router or require a custom solution or demonstration?
At FB Peripherals, we recognise that every project has its own unique demands. If you have any questions about the Robustel R2000ENT or need a custom Industrial Cellular VPN Router solution designed specifically for you, our team of technical experts are ready to assist you.
